TrueVIS VG Series FREE UPGRADE
FREE UPGRADE
The Power to Excite Is Now Available
for TrueVIS VG-640/540 Owners

Valuable Free Upgrade Provides Stunning Print Expression, Increased Reliability and Improved Usability

With the free upgrade of your current TrueVIS VG-640 / 540 inkjet printer/cutter, you can now take advantage of a new generation of TrueVIS Ink and many of the latest, most advanced functions of the recently launched VG2-640/540.
Thanks to TR2 ink, which boasts a wide color gamut, and a new “True Rich Color” preset which maximizes the potential of the VG-640/540 and the new ink capabilities, the VG-640/540 can now produce stunning graphics that excite both heart and mind. The free upgrade also adds improved printing and cutting accuracy as well as increased usability.

Brilliant Yet Natural Color

With the free upgrade, you can use new TR2 ink* and a new “True Rich Color” preset which takes full advantage of the VG’s great color reproduction capability and the wide color gamut provided by new TR2 ink. Now vibrant color can be combined with neutral grays, smooth gradations and natural skin tones to create stunning graphics.
* VG does not support TR2 Orange ink. TR2 White ink is available in 250 ml.

True Rich Color

Print with Confidence Supported by New Certifications

  • 3M™ MCS™ Warranty

    3M™ MCS™ Warranty

    The VG with new TR2 ink is certified for long-lasting results by the 3M MCS Warranty, providing your customers with assurance of the quality and reliability of their graphics.

    More information about 3M™ MCS™ Warranty

  • Avery Dennison ICS Performance Guarantee

    Avery Dennison ICS Performance Guarantee

    The VG with new TR2 ink is also certified by the ICS Performance Guarantee which provides protection for up to 4 years for outdoor durability and up to 7 years for indoor durability. Avery has also set the recommended outgassing time at just six hours. This dramatically reduces the print and laminate timeframe.

    More information about Avery ICS Performance Guarantee

Advanced Print & Cut Functions

With the free upgrade, you can obtain a host of new features to improve Print & Cut accuracy and usability.

New Crop Mark Features

Crop mark options are added for cutting laminated printed materials to provide more stable cutting performance.

  • Crop mark by rowCrop mark by row

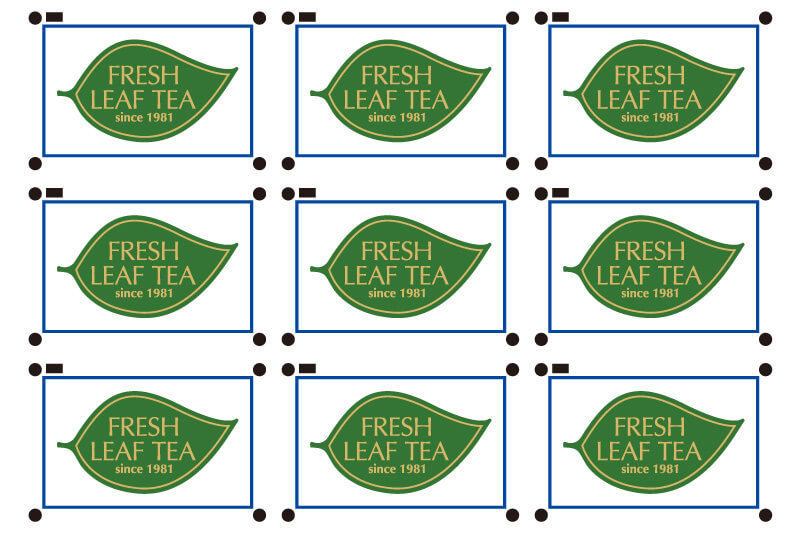

  • Crop mark by imageCrop mark by image

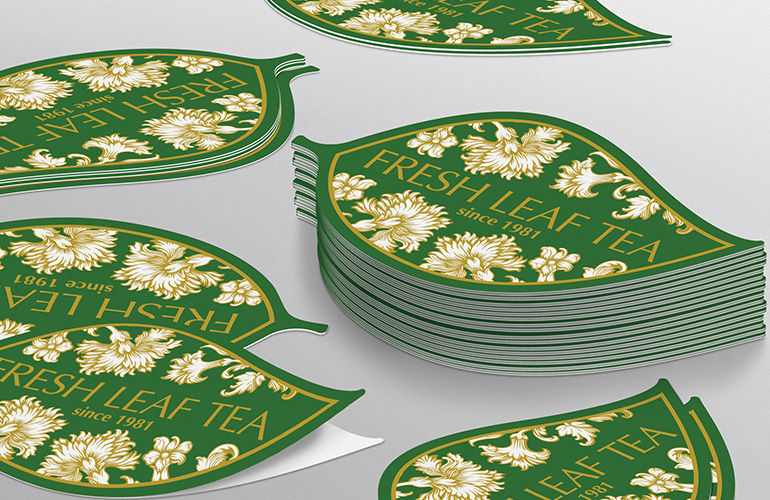

New PerfCut Mode
New PerfCut Mode
New PerfCut Mode

A newly added PerfCut mode lets you print, cut and die-cut in one seamless operation.

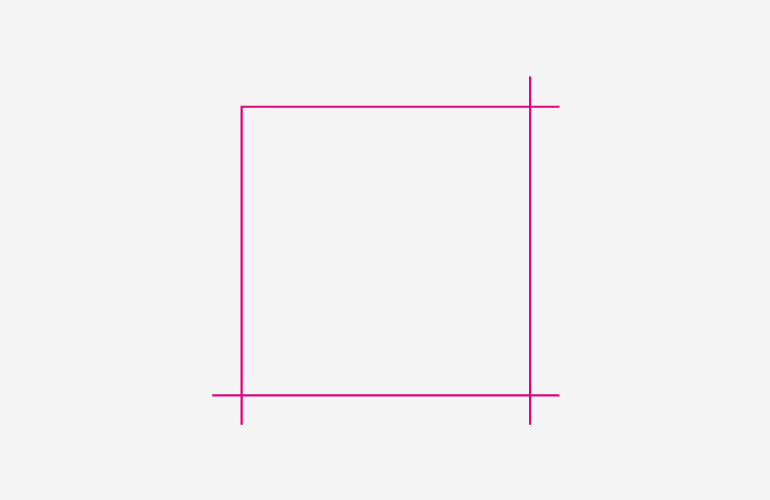

Over Cut Function
Over Cut Function
Over Cut Function

This function cuts an extra 1 mm at the start and end of each line in order to produce sharp corners when cutting thicker materials.

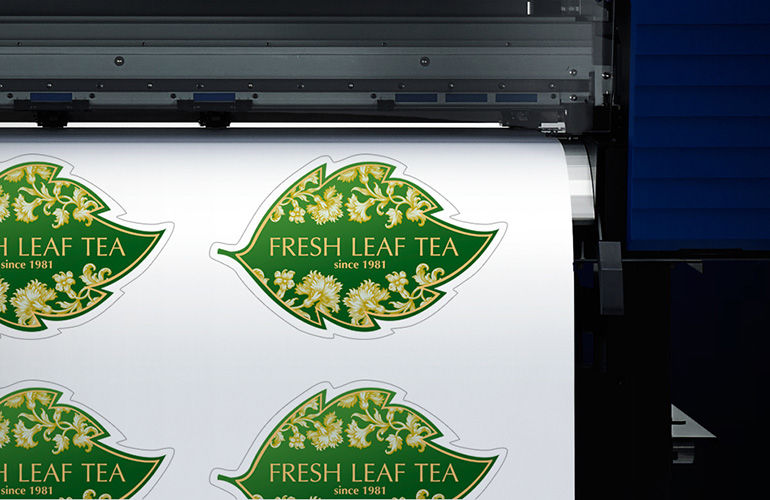

Cut and Print Function
Cut and Print Function
Cut & Print Function

In addition to the conventional Print & Cut function, the Cut & Print function allows you to cut first and then print later. This helps to reduce edge curls when dealing with thin media, such as heat transfer films for apparel decoration.

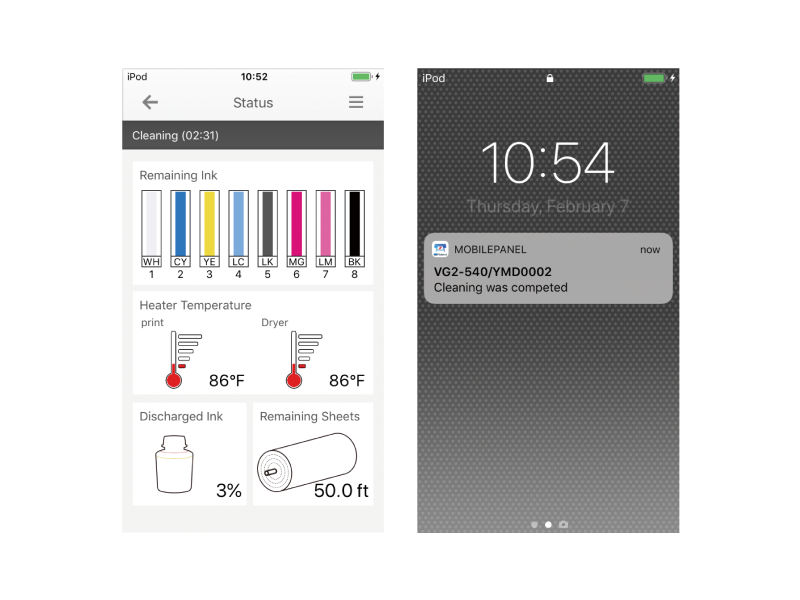

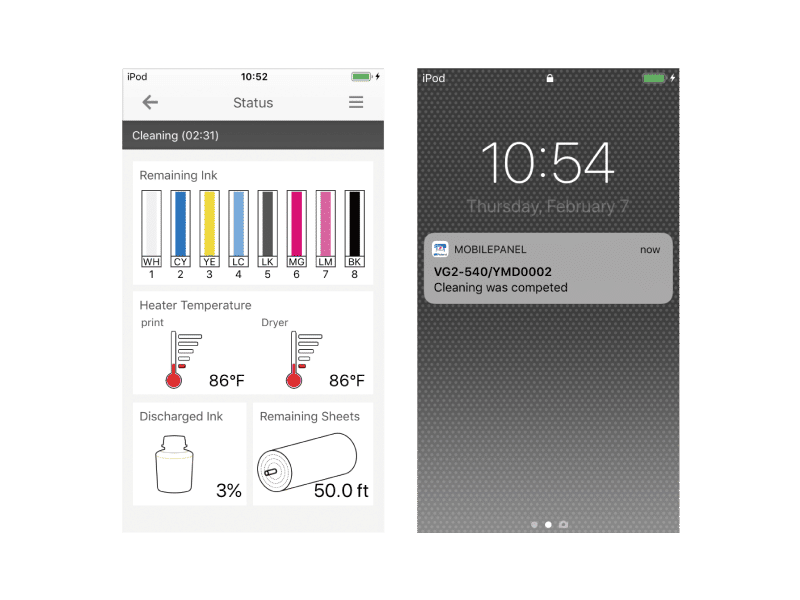

Roland DG Mobile Panel 2

Advanced Roland DG Mobile Panel 2

The Mobile Panel, which remotely controls the VG series from a smartphone or tablet using a Bluetooth connection, has evolved into Mobile Panel 2. It lets you perform control panel functions, such as test printing and cleaning, as well as check the user manual from your smartphone or tablet.
New push notifications notify you of completion of printing or cleaning, which assists the operator when working away from the printer. Bluetooth connectivity has also been improved.
*Supports 6 languages (Japanese, English, Italian, German, Spanish, French)

Roland DG Mobile Panel 2 is available at App Store and Google Play.

Roland DG Mobile Panel 2

New Media Take-up System

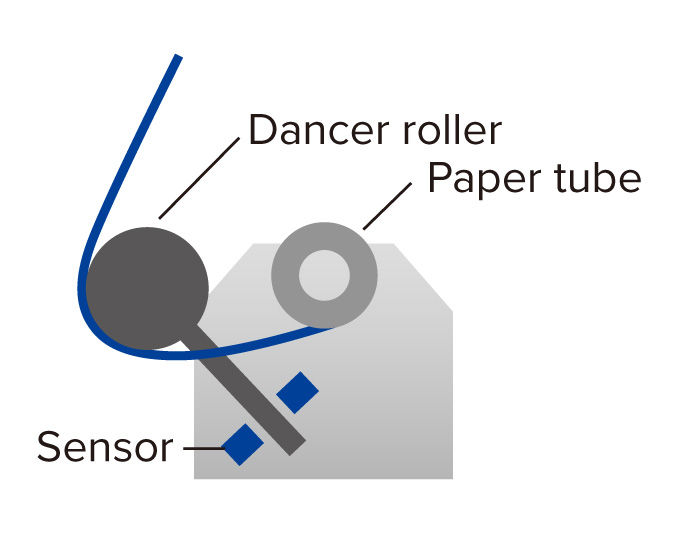

A new TU4 media take-up unit supports two modes for improved take-up accuracy for various types of media. In addition to the conventional mode of taking up while always applying tension to the media, the TU4 supports a new mode of taking up while giving some slack to media such as PVC, which has high elasticity and a slippery back surface. Once there is slack, distortion of the media being taken up is eliminated to achieve stable take-up operation.

New Take-Up Mode

  1. Media is printed and fed.

    1. Media is printed and fed.

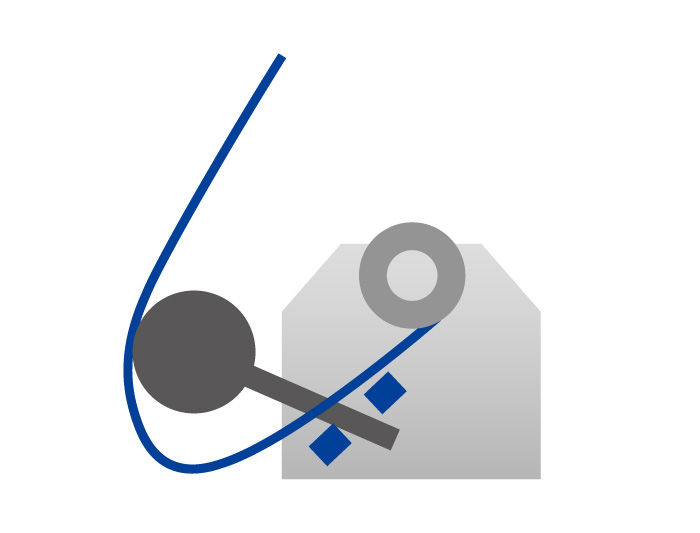

  2. Media is not taken up immediately even when a dancer roller hits a lower sensor.

    2. Media is not taken up immediately even when a dancer roller hits a lower sensor.

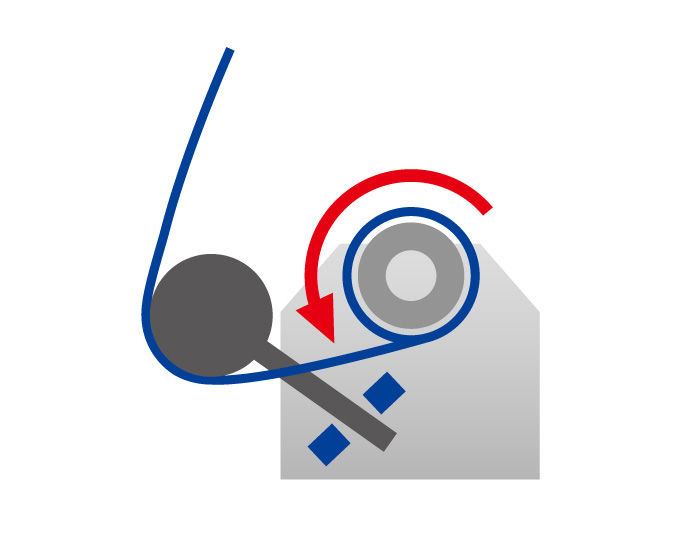

  3. Media is taken up after a certain period of time according to the FEED speed.

    3. Media is taken up after a certain period of time according to the FEED speed.

  4. When the dancer roller rises and hits the upper sensor, take-up operation is stopped.

    4. When the dancer roller rises and hits the upper sensor, take-up operation is stopped.

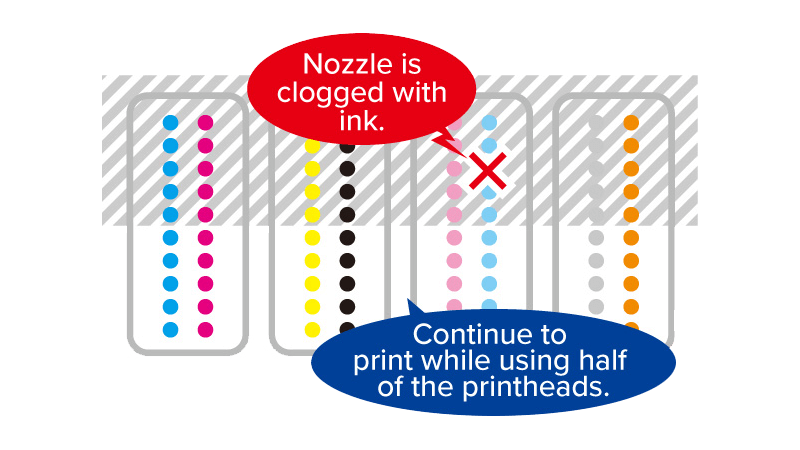

New Nozzle Mask function

Other Functions to Enhance Usability

Should a printhead clog, a new Nozzle Mask function allows you to continue printing while using the remaining printheads. In addition, you can also fine-tune the VG’s job sequences, operation panel and maintenance procedures to enhance user experience and streamline the entire printing operation. The printer does not immediately detect the paper width even when media is inserted from the back and when a pinch roller down lever is pulled down (press ENTER to allow the printer to detect the paper width). As the temperature rises, the current temperature is displayed on the panel. Users can also turn off the print heater and dryer together. This feature is convenient when performing cutting only. The workflow of manual cleaning and the sheet cut sequence were improved to reduce waiting time.

New Nozzle Mask function
