DTF Printing for
Real Production
Continuous operation. Exceptional results.

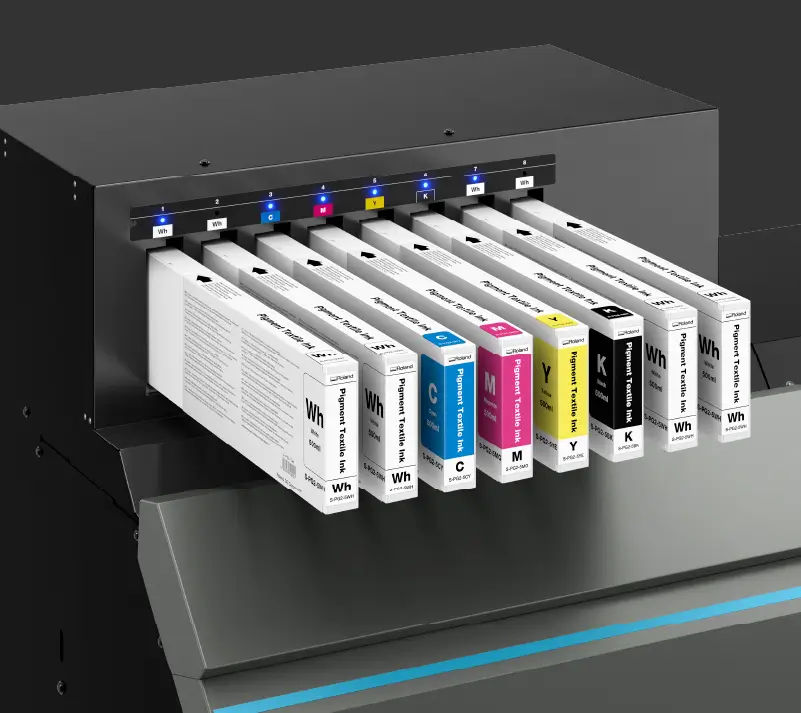

NOW WITH DOUBLE WHITE INK
The dependable DTF printer built for real production.

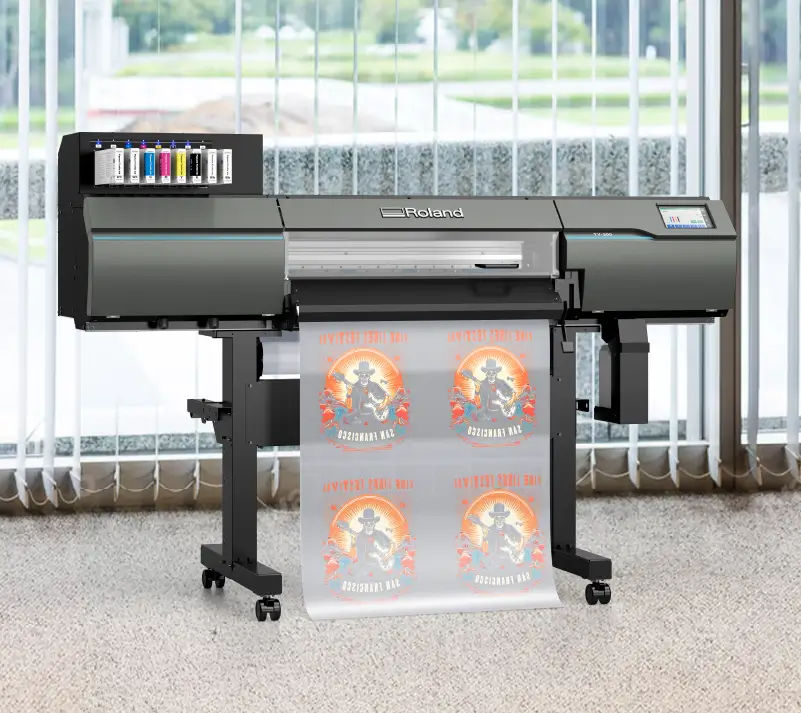

TY-300 Direct-to-Film Printer
You care about producing work that looks exceptional. The TY-300 helps you achieve it with richer color, stronger detail and more consistent results than other DTF systems. Faster output and expanded white capacity keep production moving, even on demanding days.
It is a complete Roland DG DTF setup with premium inks and powder, backed by the reliability and support you can build your reputation on.
Run longer. Print sharper. Deliver more.

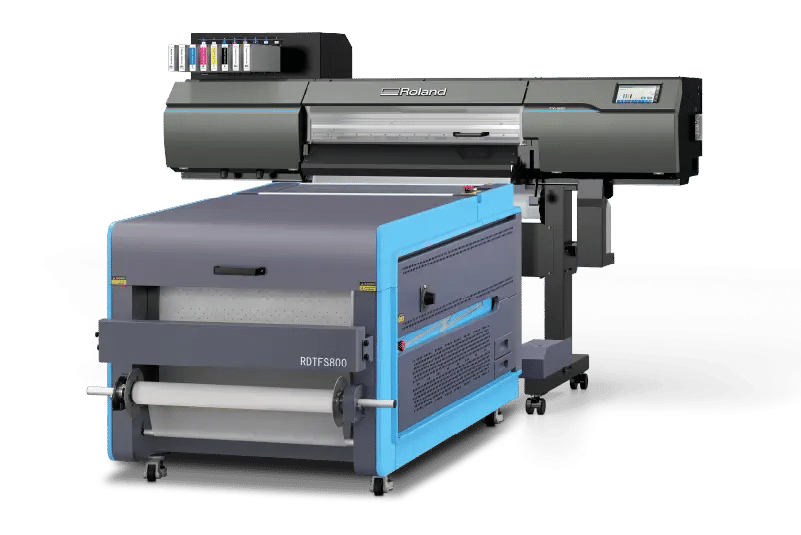

Your Complete Roland DG DTF Workflow
You want transfers you can trust, shift after shift. TY-300 sits at the heart of a complete Roland DG DTF setup, combining the TY-300 DTF printer with
Professional DTF Printing for Every
Apparel and Fabric Application
Built for Consistent, Commercial-Grade DTF Production
PERFORMANCE
DETAIL
PRODUCTIVITY
RELIABILITY
COSTS
OPERATION
Experience Next-Generation DTF Printing with the TY-300
Powerful Performance.
Maximum Productivity.
The TY-300 delivers exceptional CMYK + White performance, printing at up to 10.9 m²/h in standard mode and 17.48 m²/h in high-speed mode, as much as 45 percent faster than comparable DTF printers tested.
This increased throughput supports continuous production and reduces the need for operator intervention, helping you meet high-volume demand with confidence.
Print with Precision.
The TY-300 delivers vivid, accurate color and fine detail across a wide range of fabrics. Internal testing shows smoother gradients and stronger solids than other printers in its class, maintaining bright whites and consistent tone from print to print.
Certified Safety and
Ink Confidence.
Roland DG’s S-PG2 inks and powder are OEKO-TEX® ECO PASSPORT certified and REACH compliant, giving you full confidence when producing apparel for retail.
The inks deliver consistent results while supporting safe, sustainable DTF production that meets the standards your customers expect.
Simplified Maintenance.
Continuous Reliability.
Designed for everyday reliability, the TY-300 simplifies routine maintenance with guided cleaning sequences and improved white-ink circulation.
Components are easily accessible, helping operators keep production running smoothly with less downtime and predictable day-to-day performance.
Outstanding
Wash Durability.
The TY-300 delivers prints that stay bright and crack-free after 50 wash cycles in internal testing, outperforming comparable DTF models evaluated.
Strong color stability and genuine film and powder help your garments maintain their premium finish long after they reach the customer.
Meets Highest Standards for Safety and Sustainable Production
The TY-300 inks and powder are compliant with OEKO-TEX® ECO PASSPORT certification, an international standard that guarantees the safety of textile products. This standard ensures that each individual ingredient in chemicals, colorants and auxiliaries used in the textile industry meets statutory requirements and is not harmful to human health.
NEP 2302 Certified products: S-PG2 ink (CY,MG,YE,BK,WH)
NEP 2303 Certified products: S-POWDER
Roland DG’s Industry-Leading Warranty and Support
The TY-300 also comes with Roland DG’s industry-best customer service and support as well as a One-Year Trouble-Free Warranty. Your success is our success, so you can rest assured we’ll be with you every step of the way to make sure you are fully satisfied with the performance of your Roland DG device.
Additional Information

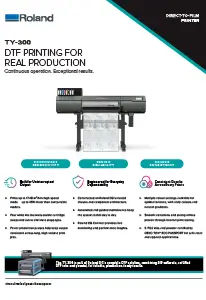

Datasheet
Download Your TY-300 Datasheet
Get your digital guide to all the features, applications, benefits and specifications of the Direct-to-Film Printer.
Download DatasheetSpecifications
| TY-300 | ||
|---|---|---|
| Printing Method | Piezo ink-jet method | |
| Media | Width | 182 to 762 mm (7.2 to 30 in.) |
| Thickness |
Maximum 1.0 mm (39.3 mil) with liner, for printing Maximum 0.4 mm (15.7 mil) with liner and 0.22mm (8.6 mil) without liner, for cutting |
|
| Roll outer diameter | Maximum 250 mm (9.84 in.) | |
| Roll weight | Maximum 30 kg (66.1 lb.) | |
| Core diameter | 76.2 mm (3 in.) or 50.8mm (2 in.) | |
| Printing/cutting width (*1) | Maximum 736 mm (28.9 in.) | |
| Ink | Type | S-PG2 INK 500 ml cartridge |
| Colors | Five colors (cyan, magenta, yellow, black, and white) | |
| Printing resolution | Maximum 1,200 dpi | |
| Cutting speed | 10 to 300 mm/s (0.39 to 11.8 in./s) | |
| Blade force (*2) | 30 to 500 gf | |
| Blade type | CAMM-1 series blade | |
| Blade offset | 0.000 to 1.500 mm (0.0 to 59 mil) | |
| Software resolution (cutting) | 0.025 mm/step (0.98 mil/step) | |
| Media heating system (*3) |
Print heater set temperature: 30 to 38°C (86 to 100°F) Dryer set temperature: 30 to 45°C (86 to 112°F) |
|
| Connectivity | Ethernet (100 BASE-TX/1000 BASE-T automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Rated input | 100-120 / 220-240 Va.c. 50/60 Hz 6.4/3.0 A | |
| Power consumption | During operation | Approx. 840 W |
| Sleep mode | Approx. 70 W | |
| Acoustic noise level | During operation | 63 dB (A) or less |
| During standby | 58 dB (A) or less | |
| Dimensions (Width x Depth x Height) | 2,032 mm × 748 mm × 1,415 mm (80 in. x 29.5 in. x 55.8 in.) | |
| Weight | 136 kg (300 lb.) | |
| Environment | During operation (*4) | Temperature: 20 to 28°C (68 to 82.4°F) , Humidity: 40 to 60 % RH (no condensation) |
| Not operating | Temperature: 5 to 40°C (41 to 104°F) , Humidity: 20 to 80 % RH (no condensation) | |
| Included Items | Dedicated stand, Power cord, Media holders, Separating knife, Replacement blade, Cleaning liquid, Drain bottle, User's Manual, Software (VersaWorks, Roland DG Connect), etc. | |
- *1: The length of printing or cutting is subject to the limitations of the program.
- *2: 500 gf is the maximum instantaneous blade force.
- The blade force must be adjusted according to details such as the media thickness.
-
*3: Warm-up is required after power up. This may require 5 to
20 minutes, depending on the operating environment.
Depending on the ambient temperature and media width, the preset temperature may fail to be reached. - *4: Operating environment (Use in an operating environment within this range.)
