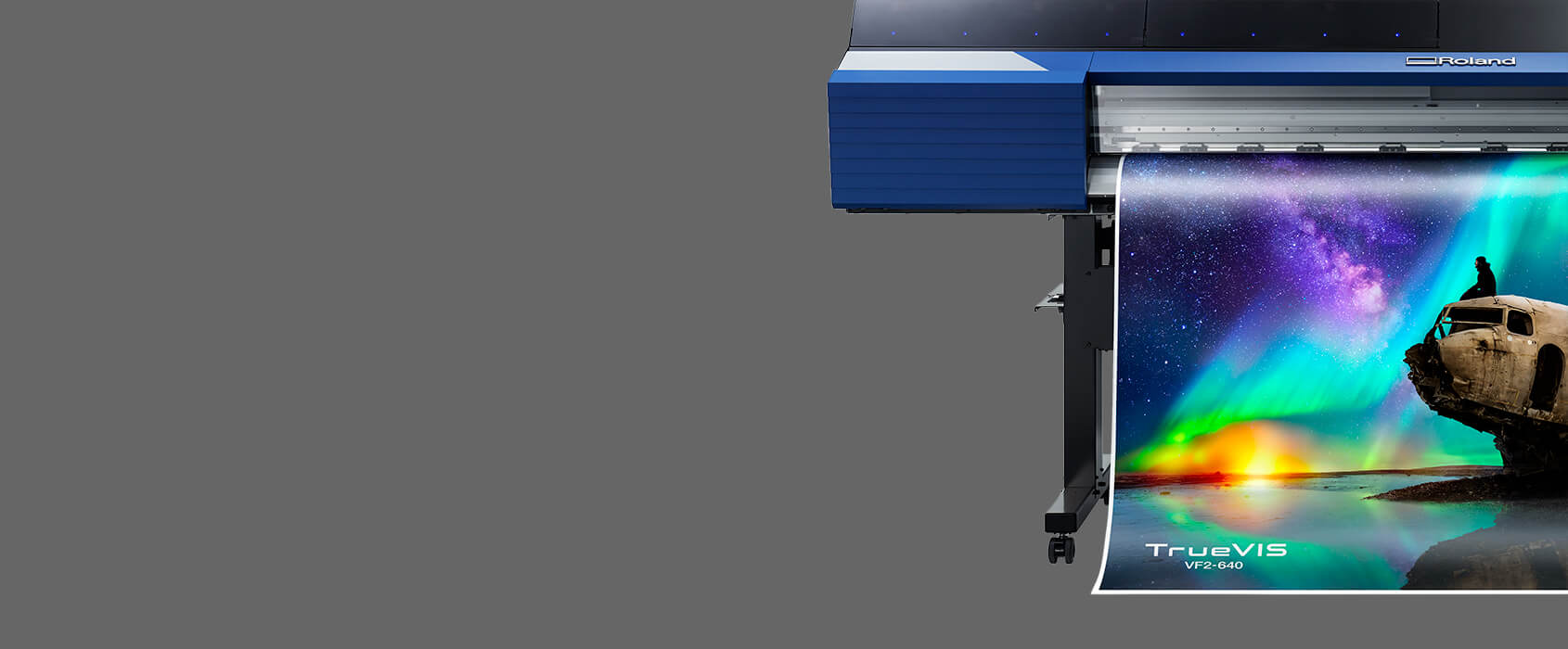

TrueVIS VF2-640 Large Format Inkjet Printer
THE POWER TO EXCITE
Explore Uncharted Colors


NEWVF2-640 Large-Format Inkjet Printer

Before developing out latest TrueVIS with the goal of exciting hearts and minds, we researched the ideal performance required for sign and graphics production. The result of our efforts is a brilliant combination of super vibrant TR2 ink with new Green and Orange and the “True Rich Color” preset that maximizes the potential of both printer and ink and enables you to explore uncharted colors for unprecedented gamut expansion, superior color accuracy, and the unique ability to achieve both vividness and natural reproduction at the same time.
The TrueVIS VF2-640 is the only printer that can offer the extraordinary Power to Excite.

Download Brochure

Only TrueVIS VF2-640 printers allow you to produce high quality graphics with "the Power to Excite."

TrueVIS VF2-640 Large Format Inkjet Printer

New TrueVIS TR2 ink for Vibrant Color

In addition to CMYKLcLmLk and White, new TR2 ink is now available in Orange and Green to further increase color gamut. Orange in general adds high visibility and impact to printed graphics and offers a warm and welcoming glow with positive emotions, while green adds natural comfort and relaxed confidence for smooth communications. To maximize the effect of these new color inks, a new Multi-Process Color Function has been developed to enable using Orange and Green inks as process colors for richer visual expression.

True Rich Color

Enhance your Business with "True Rich Color"

In order to take full advantage of the VF2-640 superior color reproduction capability and the wider color gamut provided by new TR2 ink, we developed a new True Rich Color preset. Now vibrant color can be combined with neutral grays, smooth gradations and natural skin tones to create stunning graphics. This pioneering print quality is unequalled for durable graphics.

True Rich Color
Quick and easy spot color matching
Quick and easy spot color matching

Quick and Easy Spot Color Matching

Standard colors such as Pantone® or DIC can be quickly matched with accurate results using the Roland Color System Library. With approximately 260 new spot color references for Orange to Red areas and Blue to Green areas now available, specific targets which had been regarded as unreachable or difficult to match can now be easily achieved.

Easily Handle Short Turn-Around Orders

FlexFire Printheads

Roland DG FlexFire printheads maximize printing performance so that even the highest speed setting delivers neutral grays, vivid colors, and smooth skin tones.

Simulate Target Printer
  1. Two Take-up Modes

    Two Take-up Modes

    A new take-up unit supports two modes according to the type of media chosen, securing take-up stability for smooth post processing.

  2. Nozzle-Mask Function

    Nozzle-Mask Function

    A Nozzle Mask function allows you to continue printing even when a nozzle is clogged with ink.

  3. New Media Clamp

    New Media Clamp

    A new media clamp allows sheet cutting without removal.

Advanced color matching
Advanced color matching

Advanced Color Matching Function

A newly developed color matching function makes it easy to reproduce matching colors among multiple VF2-640 printers, as well as between TrueVIS Series VG2-640/540 printer/cutters, when the same ink types are used. The function is ideal for producing consistent colors when using multiple printers for high-volume jobs, or printing large graphics among several printers. It also compensates for color differences caused by aging printers or print head replacements.

CAMM-1 GR-640

Efficient Printing and Cutting Workflow

For superior reliability, the VF2-640 is fully compatible when paired with Roland DG cutting devices, and print/cut data can be handled by VersaWorks 6 for efficient production of stickers and labels. The newly developed Job Assistant is also able to set and edit cutting lines in VersaWorks 6, making it a breeze to create stickers with complex shapes.

CAMM-1 GR Large Format Vinyl Cutters
CAMM-1 GR-640

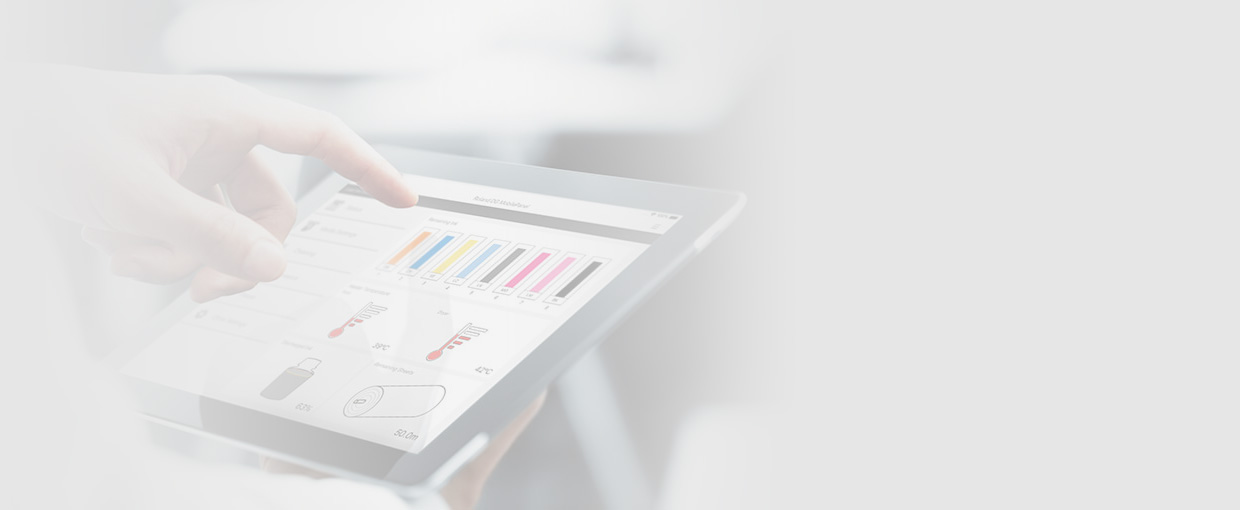

Roland DG Mobile Panel 2

Smarter, More Seamless Operation

To enhance user experience and streamline the entire printing operation, we fine-tuned the VF2-640's design, job sequences, software functions, operation panel and maintenance procedures. In addition to the built-in control panel, the Roland DG Mobile Panel 2 lets you perform control panel functions, including test printing and cleaning, while checking the user manual from your smartphone or tablet using a Bluetooth connection.

More information about Roland DG Mobile Panel 2

Roland DG Mobile Panel 2

Obtain Roland DG Mobile Panel 2

  1. Download it on the App Store

  2. Get it on Google Play

Reliability, Durability and Safety

The VF2-640 with new TR2 ink is certified for long-lasting results by 3M™ MCS™ Warranty, providing your customers with the assurance of the quality and reliability of their graphics.

3M MCS Warranty More information about 3M™ MCS™ Warranty

The VF2-640 with new TR2 ink is also certified by the Avery ICS Performance Guarantee which provides protection for up to 4 years outdoors and up to 7 years indoors.

Avery Dennison ICS Warranty More information about Avery ICS Performance Guarantee

In addition, the VF2-640 with TR2 ink is certified GREENGUARD Gold for safe indoor graphic applications.

GREENGUARD

VersaWorks 6 to Accelerate your Printing Business

The new VersaWorks 6 bundled RIP software is designed to simplify operation while maximizing the power of your VF2-640 and other Roland DG devices. Features include:

  • A Harlequin RIP dual-core engine with support for PDF 2.0 and native 64-bit processing provides accurate rendering of PDFs with shadows and transparencies
  • Five print queues and the ability to save and store unlimited queue settings
  • Special Color Plate Generation lets you auto-generate White ink layers
  • Newly developed Job Assistant function can layout and edit required cutting lines in VersaWorks 6
  • Built-in Pantone® and Roland Color spot color libraries

See VersaWorks 6 web page for details

Additional Information

TrueVIS VF2-640

VF2-640
Printing method Piezo ink-jet method
Media Width 259 to 1,625 mm (10.2 to 64 in.)
Thickness Max. 1.0 mm (39 mil) with liner
Roll outer diameter Max. 210 mm (8.3 in.)
Roll weight Max. 40 kg (88 lb.)
Core diameter (*1) 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing width (*2) Max. 1,615 mm (63.6 in.)
Ink Type TrueVIS INK 500 ml pouch (only white 250 ml)
Colors 8 colors (Cyan, Magenta, Yellow, Black, Light Black, Orange, Green, and White)
8 colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, and White)
8 colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, and Orange)
7 colors (Cyan, Magenta, Yellow, Black, Light Black, Orange and Green)
4 colors (Cyan, Magenta, Yellow, and Black)
Printing resolution (dots per inch) Max. 1,200 dpi
Distance accuracy (*3) Error of less than ±0.3% of distance traveled or ±0.3 mm (±11.8 mil), whichever is greater.
Media heating system (*4) Print heater set temperature: 30 to 45°C (86 to 112°F)
Dryer set temperature: 30 to 50°C (86 to 122°F)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz
Power consumption During operation Approx. 1,090 W
Sleep mode 40 W
Acoustic noise level During operation 63 dB (A) or less
During standby 53 dB (A) or less
Dimensions (with stand) 2,945 (W) × 730 (D) × 1,310 (H) mm (116 [W] × 28.8 [D] × 51.6 [H] in.)
Weight (with stand) 200 kg (440.9 lb.)
Environment During operation Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80% RH (no condensation)
Not operating Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80% RH (no condensation)
Included items Dedicated stands, power cord, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, user's manual, etc.
  1. *1 The media holders of this machine are designed to be used exclusively with media that has a paper tube (core) with an inner diameter of 3 inches. To use 2-inch media, the optional media flanges are required.
  2. *2 The length of printing is subject to the limitations of the application software.
  3. *3
    • Media type: Media specified by Roland DG Corporation
    • Temperature: 25°C (77°F), humidity: 50%RH
    • Roll media must be loaded correctly.
    • Excluding expansion/contraction of the media
    • Not assured when the print heater or dryer is used.
    • Assumes all correction and adjustment functions of the machine have been used properly.
    • Print travel: 1 m (39.4 in.)
  4. *4
    • Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
    • Depending on the ambient temperature and the media width, the set temperature may not be reached.
VersaWorks 6 System Requirements
Operating System Windows® 10 (32/64-bit), Windows® 8.1 (32/64-bit), Windows® 7 Ultimate / Professional (32/64-bit)
CPU Intel® Core™ 2 Duo, 2.0 GHz or faster recommended
RAM 2 GB or more recommended
Video card and monitor A resolution of 1,280 x 1,024 or more recommended
Free hard-disk space 40 GB or more recommended
Hard-disk file system NTFS format
Other Internet connection recommended
