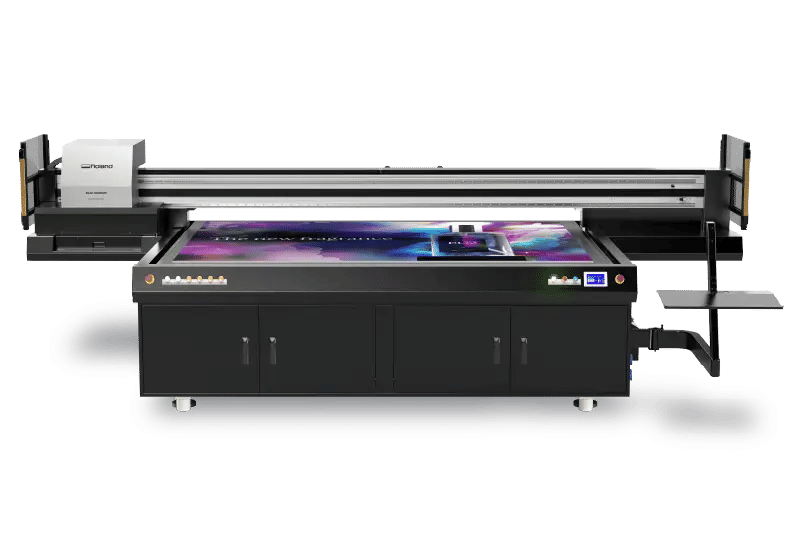

NEW EU2-1000MF UV LED Flatbed Printer
The time is right, the machine is right, and the price is right to get into high-volume UV flatbed printing with the EU2-1000MF. This versatile, incredibly productive machine lets you maximize output, expand your product offerings, and increase profitability. With the EU2-1000MF flatbed, you can print high-quality graphics at high speeds directly onto a wide variety of substrates, including media up to 96 x 48 inches and 3.74 inches high.
- Print on PETG, PVC board, foam board, wood, corrugated board, aluminum plate and more.
- Rapid printing with a choice of a 4-color/ four print head, OR 6-color/ six print head models.
- Reliable, high-quality printing with high-density, low-cost E-US-ink, a liquid cooled LED lamp system, 4-zone vacuum bed, and many more advanced features.
- Comes with VersaWorks 6 RIP software – Roland DG’s most powerful, intuitive RIP to date – which includes a host of useful features and tools that optimize efficiency, productivity, and convenience.
The EU2-1000MF flatbed UV printer is built for direct-to-board production, removing the delays and handling involved in roll printing, laminating and mounting. With a new generation flatbed platform delivering up to 1.5× faster output, it provides stable, repeatable production for signage, retail displays and interior panels.
DIRECT-TO-BOARD PRODUCTION
Print rigid substrates without laminating or mounting steps.
BUILT FOR HIGH VOLUME
New generation flatbed platform delivers up to 1.5× faster production speeds.
STABLE PANEL PRINTING

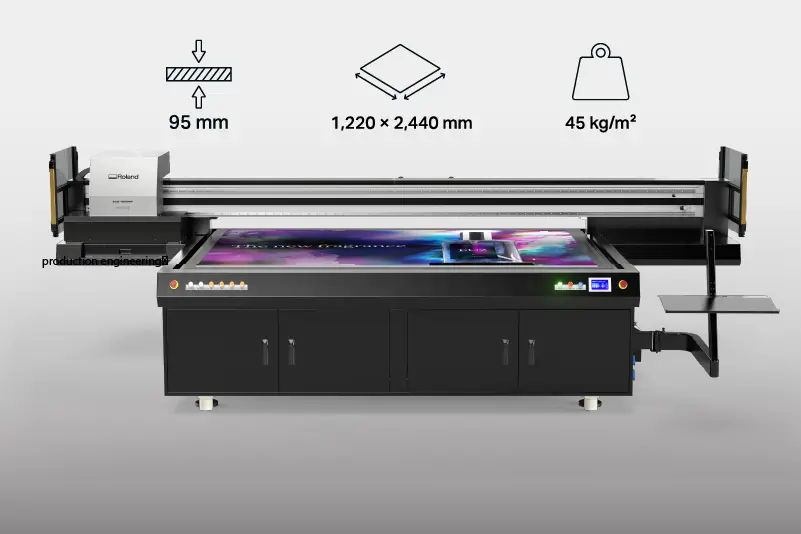

Precision flatbed mechanism supports boards up to 1,220 × 2,440 mm and 95 mm thick*.
CONTROLLED RUNNING COSTS
E-US UV inks provide predictable ink usage and long-run stability.
*The original printable width is 2,440 × 1,120, but it can be changed to 2,440 × 1,220 through adjustment by a service engineer.
Direct-to-Board Printing for Production Environments
If you produce panels for retail environments, exhibitions, interiors or general signage, the EU2-1000MF supports a wide range of board-based applications. From standard sign panels to shaped displays and decorative surfaces, it is designed for consistent, production-scale output.
Signage Panels
Exhibition & Event Panels
Architectural Wall Panels
Retail & POS Displays
Transparent Acrylic Graphics
Decorative & Specialty Substrates
A Complete Production System
UV Flatbed Printer
Print directly onto board and panel substrates with stable, repeatable output for daily production.
VersaWorks RIP
Generate accurate print data with Roland DG’s VersaWorks 7 RIP software for production output.
Economical E-US Ink
E-US UV inks deliver durable graphics with consistent performance and controlled running costs.
Roland DG Care Warranty
Factory-trained service support and warranty coverage for production environments.
Economical UV Inks, Controlled Operation
E-US UV inks are available in CMYK, White and Gloss, with the EU2 configurable at installation for either 4-color (CMYK) or 6-color (CMYKWhGl) printing, supporting a wide range of direct-to-board applications. GREENGUARD Gold certified formulations make them suitable for sensitive indoor environments, while stable ink performance and cost control support high-volume flatbed production.
Easy Ink Loading
Refill 2.5L ink tanks during operation to maintain continuous, high-volume production.
Print at Lower Running Costs
E-US UV inks deliver cost-effective performance for large-format flatbed production environments.
LCD Ink Level Display
Monitor ink levels in real time for controlled refilling and uninterrupted production runs.
White Ink Agitation
Automatic agitation prevents white ink settling, maintaining consistent density and output stability.
GREENGUARD Gold certified E-US inks support compliant indoor production across retail, hospitality and commercial environments.
Four or six staggered printheads, stabilized curing and automated media control designed for sustained output.

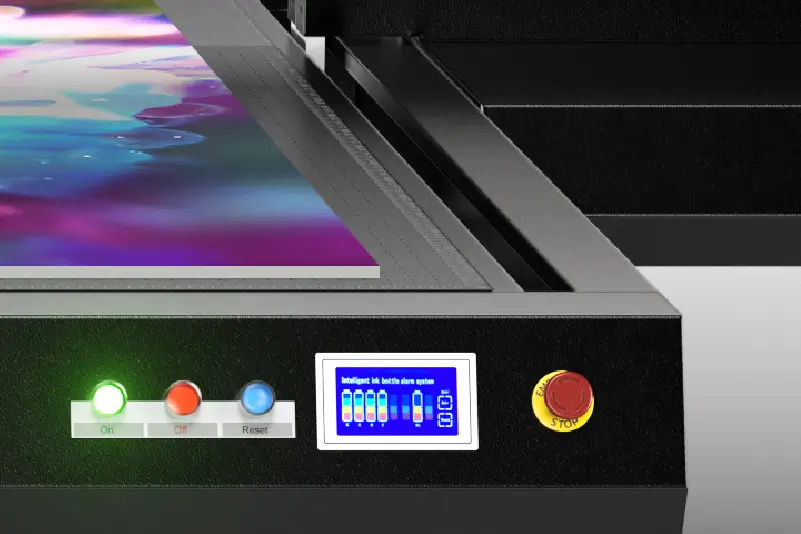

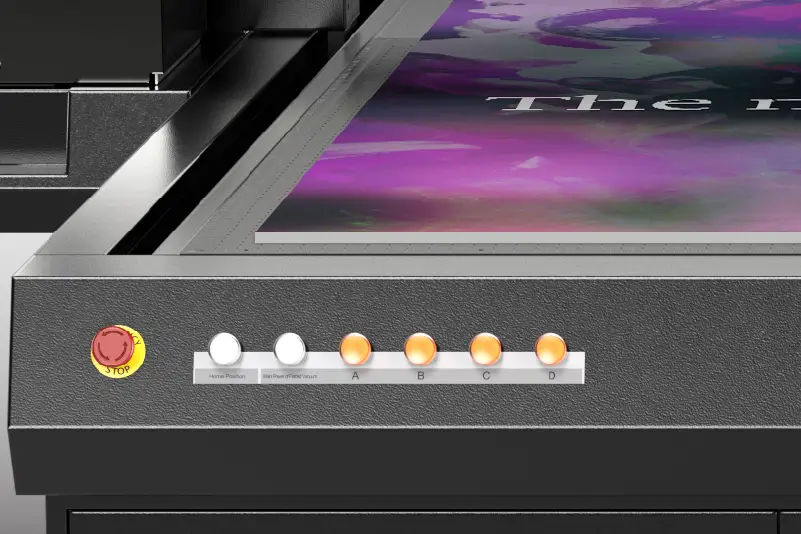

Digitally controlled vacuum zones secure full sheets or partial panels without manual adjustment. Activate only the areas required to stabilize boards and reduce setup time between jobs.
Positive air pressure and controlled suction support heavy and thick panels during loading and printing. Designed for consistent positioning across repeated production runs.

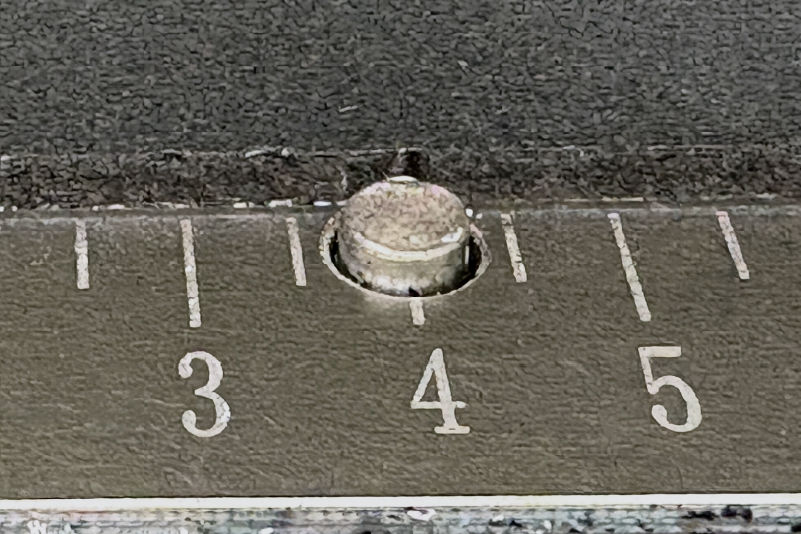

Pop-up alignment pins position boards precisely to the print origin at the touch of a button. Faster setup. Repeatable panel placement. Reduced operator correction.

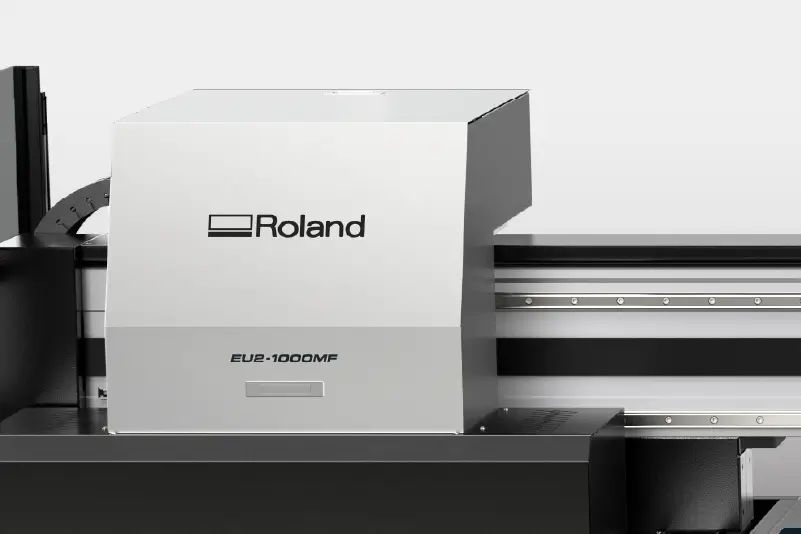

Liquid cooling maintains curing stability during extended print runs. Consistent curing supports reliable surface finish across long production cycles.
Built for Production
|
Industrial Casters and Leveling The machine can be securely positioned for stable production and adjusted when relocation is required. |
|
Printhead Protection and Sensing Media collision detection and automatic height sensing support accurate setup and consistent production output. |
|
Anti-Static Control System An integrated ionization system reduces static interference to help maintain consistent print quality. |
|
Side Control Station A dedicated side table provides practical space for a PC workstation and convenient machine management. |
|
VersaWorks RIP Integration VersaWorks RIP software manages color control, job layout and production tools for organized workflow handling. |
|
Emergency Stop System 4-quadrant emergency stops, gantry safety panel and detection beam enhance operator safety. |
Included VersaWorks RIP Software
The EU2 includes VersaWorks RIP software for full control of color, layout and production settings. The software simplifies job management, supports white and gloss ink layers, and provides built-in color management tools to reproduce brand colors accurately and consistently.
Roland DG Care for Production Environments
The EU2 is engineered for reliable, production-grade performance. Every system includes a one-year warranty, professional installation by factory-trained Roland DG engineers and guided first-time setup.
Ongoing service support, direct technical assistance and expert training help keep production running and protect your investment.
Additional Information
Datasheet

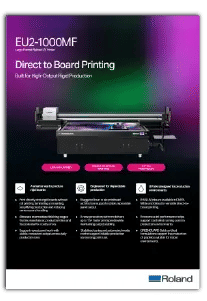

Download Your EU2-1000MF Datasheet
Download a quick overview of the EU2 large-format flatbed UV printer, including key features and specifications.
Download DatasheetSpecifications
| Model: | EU2-1000MF | |
|---|---|---|
| Printing method |
Piezo ink-jet method | |
| Acceptable media | Width | Max. 2,440 mm (96 in.) |
| Length | Max. 1,220 mm (48 in.) | |
| Thickness | Max. 95 mm (3.74 in.) | |
| Weight | Max. 45 kg/m2 (99 lb./m2) | |
| Maximum printing width/printing length (*1) | Max. 2,440 mm x 1,120 mm (96 in. x 44 in.) | |
| Ink | Type | E-US |
| Colors | Six colors (cyan, magenta, yellow, black, white, gloss) Four colors (cyan, magenta, yellow, black) |
|
| Tank capacity | 2.5 L | |
| Ink-curing unit | Built-in UV-LED lamp | |
| Printing resolution (dots per inch) | Max. 720 dpi x 1,200 dpi | |
| Connectivity | Ethernet 1000BASE-T for control PC only | |
| Power Requirements | AC 220 V, 50/60 Hz, 32 A | |
| Power consumption | During operation | Approx. 5,900 W |
| Acoustic noise level | During operation | 80 dB (A) or less |
| Dimensions (Width x Depth x Height) | 4,750 mm x 2,100 mm x 1,470 mm (188 in. x 83 in. x 58 in.) | |
| Machine occupation dimensions | 7,000 mm × 5,000 mm or more (276 in. x 197 in. or more) | |
| Weight | 1,300 kg (2,870 lb.) | |
| Environment | Temperature: 18 to 25 °C (64.4 to 77 °F), humidity: 40 to 70 %RH (no condensation) | |
| Included items | Power cord, user's manual (to download), Software RIP (to download) , Goggles, etc. | |
*1 The maximum printing area can be extended up to 2,440 mm × 1,220 mm (96 in. × 48 in.).
