VG2-640/540
NEWSG2-640/540/300 Large-Format Inkjet Printer/Cutters
The TrueVIS VG2/SG2 series was designed to inspire creative expression with outstanding color and to grow your business. The vibrant color of new TR2 inks and the new True Rich Color preset combine to maximize the potential performance of the hardware and inks and enable you to explore uncharted colors for unprecedented gamut expansion, superior color accuracy, and the unique ability to achieve both vividness and natural reproduction at the same time.
Only the TrueVIS VG2/SG2 series offer this extraordinary Power to Excite both hearts and minds.
Backlit Signs
Wallpaper
Die-cut Stickers
Vehicle Wraps and Graphics
Die-cut Stickers
Posters
Creative Window Graphics
Backlit Signs
Backlit Advertising Displays
Promotional Clothing, Workwear and Sports Apparel
Retail Signage
Outdoor/Indoor Banners
Interior Wall Decor
Trade Show Displays
Outdoor Signage
New TrueVIS TR2 Ink for Vibrant Color
In addition to CMYKLcLmLk and White, new TR2 ink is now available in Orange and Green to further increase color gamut. Orange in general adds high visibility and impact to printed graphics and offers a warm and welcoming glow with positive emotions, while green adds natural comfort and relaxed confidence for smooth communications. To maximize the effect of these new color inks, a new Multi-Process Color Function has been developed to enable using Orange and Green inks as process colors for richer visual expression.
Enhance your Business with "True Rich Color"
In order to take full advantage of the VG2/SG2 series’ superior color reproduction capability and the wider color gamut provided by new TR2 ink, we developed a True Rich Color preset. Now vibrant color can be combined with neutral grays, smooth gradations and natural skin tones to create stunning graphics. This pioneering print quality is unequalled for durable graphics.
TrueVIS VG2/SG2 outshines competitors in Independent Tests
"Under each test condition, the eight-color Roland TrueVIS VG2-540 with Orange ink produced a larger color gamut than most eco-solvent/latex ink devices tested to date by BLI…with the VG2-540 reproducing many hard-to-match colors in our corporate color accuracy test extremely well."
Joseph Tischner,
Wide Format & Cut Sheet Production Analyst
Buyers Lab, Keypoint Intelligence
Independent Reports Available for Downloading
VG2, CMYKLcLmLkOr
VG2, CMYKLcLmLkWh
VG2, Dual-CMYK
SG2, CMYK
Quick and Easy Spot Color Matching
Standard colors such as Pantone or DIC can be quickly matched with accurate results using the Roland Color System Library. With approximately 260 new spot color references for Orange to Red areas and Blue to Green areas now available, specific targets which had been regarded as unreachable or difficult to match can now be easily achieved.
Automated Long-run Decals/Labels Production
When multiple copies of stickers, decals, and labels are produced, the shorter the job length is, the higher print & cut accuracy becomes. Using the Multiple Print function allows the printer to automatically conduct highly accurate printing and cutting for a group of labels several times without the need of using crop marks. The combination of a new precision media take-up system with highly accurate print & cut functionality enables the production of longer-run unattended jobs.
- Lengthy Print & Cut Jobs with Crop Marks
Print all copies and cut them afterwards.
Lengthy jobs require crop mark registration. It takes longer to read crop marks.
- New "Multiple Print" Function
Continuous Print and Cut per Shorter Distances.
Better tracking accuracy with shorter print & cut jobs results in SHORTER PRODUCTION TIME!!
Robust Mechanical Structure for Highly Reliable Print&Cut Production
The VG2/SG2 series achieves a high degree of mechanical precision for printing and cutting accuracy. The newly developed automatic pinch roller system provides an automated workflow requiring minimal operator intervention. The pressure of the side pinch rollers has been optimized to obtain further accuracy in media feeding movement for both printing and cutting jobs.
Cutting carriage
Middle pinch roller
Advanced Print&Cut Features for High Quality Decal Production
For precise accuracy when cutting laminated graphics, new multiple-cropmark functions are equipped. In addition, a Cut and Print mode is available, which helps to produce high-edge quality graphics especially for thin flexible materials such as heat transfer media for apparel decoration.
Crop mark by row
Crop mark by image
Eliminate Trimming with Perforated Cut
The improved cutting control technology of the VG2/SG2 series introduces a precision Perforated Cut function for producing die-cut, ready-made labels/decals without the need of a post-trimming process. Since the perforated cut can also be applied to contour cutting, it can produce unique, custom-shaped stickers ready to be shipped. This eliminates the post trimming process and supports short turn-around jobs.
Exceptional Performance to Handle Short Turn-Around Orders
FlexFire Printhead
Roland DG FlexFire printheads maximize printing performance so that even the highest speed setting delivers neutral grays, vivid colors, and smooth skin tones.
VG2 series (4 heads)
SG2 series (2 heads)
-

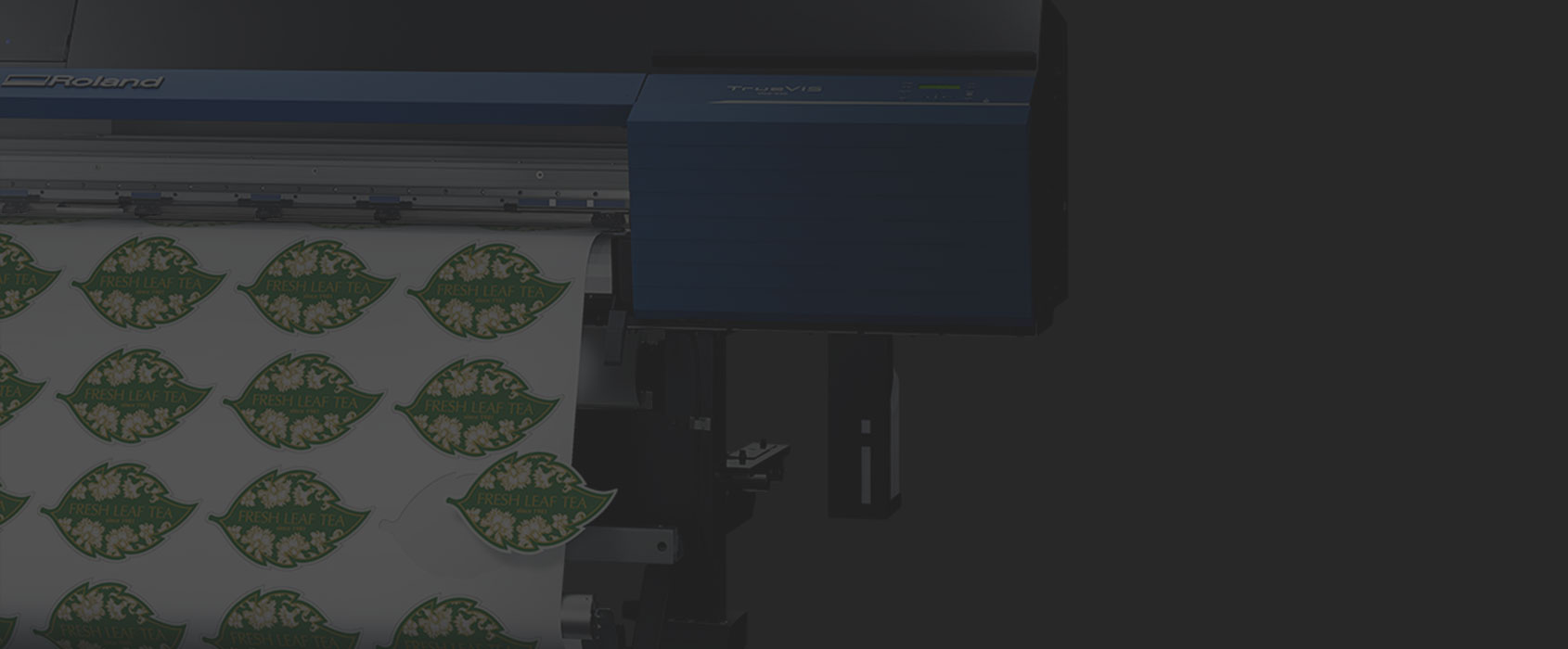

Two Take-up Modes
A new take-up unit supports two modes according to the type of media chosen, securing take-up stability for smooth post processing.
-
Nozzle-Mask Function
A Nozzle Mask function allows you to continue printing even when a nozzle is clogged with ink.
-
New Media Clamp
A new media clamp allows sheet cutting without removal.

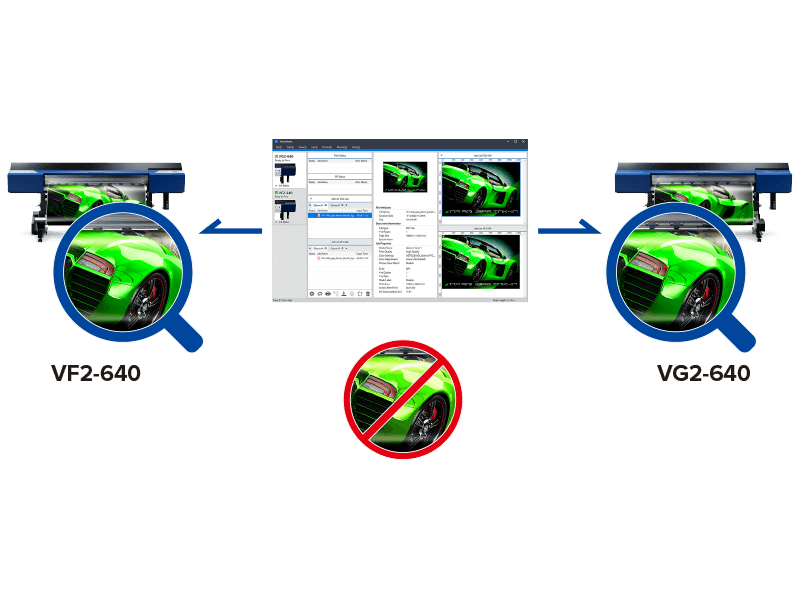

Advanced Color Matching Function
A newly developed color matching function makes it easy to reproduce matching colors among multiple VG2 series, as well as between TrueVIS Series VF2-640 printers, when the same ink types are used. The function is ideal for producing consistent colors when using multiple printers for high-volume jobs, or printing large graphics among several printers. It also compensates for color differences caused by aging printers or print head replacements.
Smarter, More Seamless Operation
To enhance user experience and streamline the entire printing operation, we fine-tuned the VG2/SG2 series’ design, job sequences, software functions, operation panel and maintenance procedures. In addition to the built-in control panel, the Roland DG Mobile Panel 2 lets you perform control panel functions, including test printing and cleaning, while checking the user manual from your smartphone or tablet using a Bluetooth connection.

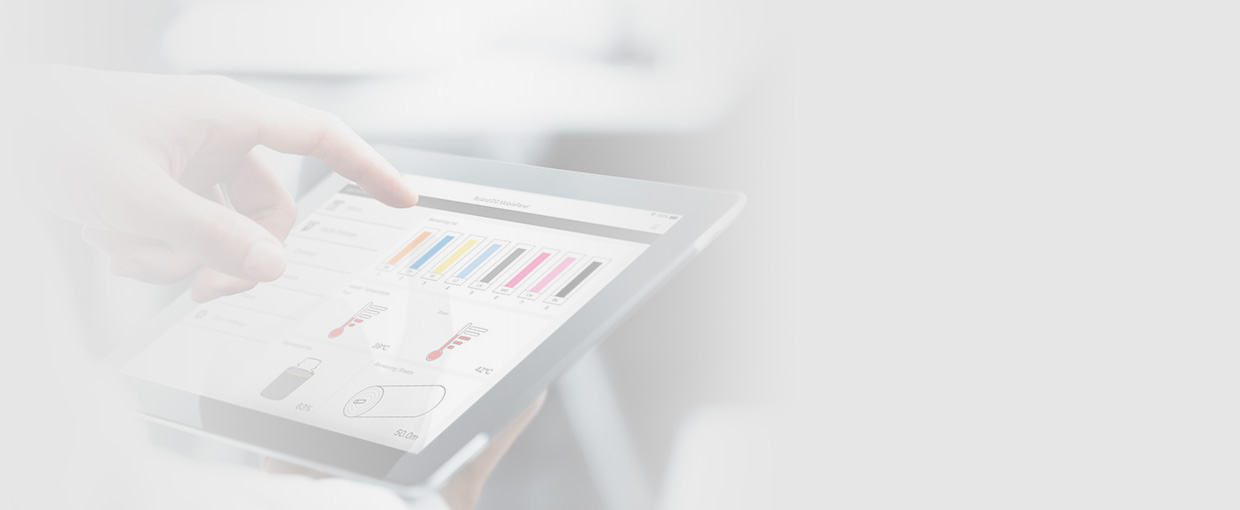

Obtain Roland DG Mobile Panel 2
Reliability, Durability and Safety
The VG2/SG2 series with new TR2 ink is certified for long-lasting results by 3M™ MCS™ Warranty, providing your customers with the assurance of the quality and reliability of their graphics.
More information about 3M™ MCS™ Warranty
The VG2/SG2 series with new TR2 ink is also certified by the Avery ICS Performance Guarantee which provides protection for up to 4 years outdoors and up to 7 years indoors.
More information about Avery ICS Performance Guarantee
The VG2/SG2 series with TR2 ink is also certified GREENGUARD Gold for safe indoor graphic applications.
VersaWorks 6 to Accelerate your Printing Business
The new VersaWorks 6 bundled RIP software is designed to simplify operation while maximizing the power of your VG2/SG2 series and other Roland DG devices. Features include:
- A Harlequin RIP dual-core engine with support for PDF 2.0 and native 64-bit processing provides accurate rendering of PDFs with shadows and transparencies
- Five print queues and the ability to save and store unlimited queue settings
- Special Color Plate Generation lets you auto-generate White ink layers
- Newly developed Job Assistant function can layout and edit required cutting lines in VersaWorks 6
- Built-in Pantone® and Roland Color spot color libraries
- Color matching function to easily match colors between the VG2 series as well as TrueVIS series VF2-640 printers when the same ink types are used. Also allows easy correction of color differences caused by aging printers or replacement print heads as well.
Award
TrueVIS series has won prestigious awards in the sign and print industry.
-
Buyers Lab 2020 Pick Awards
- Category : Outstanding Entry-Level CMYK Eco-Solvent/Latex 54"/64" Printer
- Winner : TrueVIS SG2-540/SG2-640 (CMYK)
- Category : Outstanding Gamut Expansion Eco-Solvent/Latex 54"/64" Printer
- Winner : TrueVIS VG2-540/VG2-640 (Eight-Color with Orange)
- Category : Outstanding Enhanced CMYK Eco-Solvent/Latex 54"/64" Printer
- Winner : TrueVIS VG2-540/VG2-640 (Eight-Color with White)
-
ISA International Sign Expo® 2019 Innovation Award
- Category : Printer
- Winner : TrueVIS VG2-640, VG2-540
-
EDP (European Digital Press Association) Awards
- Category : Best Print & Cut Solution
- Winner : TrueVIS VG2-640, VG2-540
TrueVIS VG2/SG2 Series Lineup
| VG2 Printer/Cutter Series |
SG2 Printer/Cutter Series |
|---|---|
 |
 |
|
Print Width |
Print Width |
| FlexFire Print Head 4 |
FlexFire Print Head 2 |
| Ink Configuration
|
Ink Configuration
|
| Accessories Automated take-up system TU4-64, TU4-54 Heater & blower DU2-64, DU2-54 |
Accessories Automated take-up system TU4-64, TU4-54, TU4-30 |
TrueVIS Series Specifications
| VG2-640 | VG2-540 | SG2-640 | SG2-540 | SG2-300 | ||
|---|---|---|---|---|---|---|
| Printing method | Piezo ink-jet method | |||||
| Media | Width |
315 to 1,625 mm |
275 to 1,371 mm (10.8 to 54 in.) |
315 to 1,625 mm (12.4 to 64 in.) |
275 to 1,371 mm (10.8 to 54 in.) |
182 to 762 mm (7.2 to 30 in.) |
| Thickness | Max. 1.0 mm (39 mil) with liner, for printing Max. 0.4 mm (16 mil) with liner and 0.22 mm (9 mil) without liner, for cutting |
|||||
| Roll outer diameter | Max. 210 mm (8.3 in.) | |||||
| Roll weight | Max. 40 kg (88 lb.) |
Max. 30 kg (66 lb.) |
Max. 40 kg (88 lb.) |
Max. 30 kg (66 lb.) |
Max. 25 kg (55 lb.) |
|
| Core diameter (*1) | 76.2 mm (3 in.) or 50.8 mm (2 in.) | |||||
| Printing/cutting width (*2) | Max. 1,600 mm (63 in.) | Max. 1,346 mm (53 in.) | Max. 1,600 mm (63 in.) | Max. 1,346 mm (53 in.) | Max. 736 mm (29 in.) | |
| Ink | Type | TrueVIS INK 500 ml pouch (only white 250 ml) | TrueVIS INK 500 ml pouch |
|||
| Colors | Eight colors (cyan, magenta, yellow, black, light black, orange, green, and white) Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white) Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and orange) Seven colors (cyan, magenta, yellow, black, light black, orange, and green) Four colors (cyan, magenta, yellow, and black) |
4 colors (Cyan, Magenta, Yellow, and Black) |
||||
| Printing resolution (dots per inch) | Max. 1,200 dpi |
|||||
| Cutting speed | 10 to 300 mm/s (0.4 to 11.8 in/s) | |||||
| Blade force (*3) | 30 to 500 gf | |||||
| Blade | Type | Roland CAMM-1 series blade | ||||
| Offset | 0.000 to 1.500 mm (0.0 to 59.1 mil) | |||||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | |||||
| Distance accuracy (when printing) (*4) (*5) | Error of less than ±0.3% of distance traveled or ±0.3 mm (±11.8 mil), whichever is greater. | |||||
| Distance accuracy (when cutting) (*4) | Error of less than ±0.4% of distance traveled or ±0.3 mm (±11.8 mil), whichever is greater. When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled or ±0.1 mm (±3.9 mil), whichever is greater. | |||||
| Repeatability (when cutting) (*4) (*6) | ±0.1 mm (±3.9 mil) or less | |||||
| Alignment accuracy for printing and cutting (*4) (*7) | ±0.5 mm (±19.7 mil) or less | |||||
| Alignment accuracy for printing and cutting when reloading media (*4) (*8) | Error of less than ±0.5% of distance traveled, or ±3 mm (±0.2 in.), whichever is greater | |||||
| Media heating system (*9) | Print heater set temperature: 30 to 45°C (86 to 112°F) Dryer set temperature: 30 to 50°C (86 to 122°F) |
|||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |||||
| Power-saving function | Automatic sleep feature | |||||
| Power requirements | AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz | AC 100 to 120 V ±10%, 5.4A, 50/60 Hz or AC 220 to 240 V ±10%, 2.7 A, 50/60 Hz | ||||
| Power consumption | During operation | Approx. 1,090 W | Approx. 710 W | |||
| Sleep mode | 40 W | |||||
| Acoustic noise level | During operation | 63 dB (A) or less | ||||
| During standby | 53 dB (A) or less | |||||
| Dimensions (with stand) | 2,945 (W) × 730 (D) × 1,310 (H) mm (116 [W] × 28.8 [D] × 51.6 [H] in.) |
2,685 (W) × 730 (D) × 1,310 (H) mm (105.8 [W] × 28.8 [D] × 51.6 [H] in.) |
2,945 (W) × 730 (D) × 1,310 (H) mm (116 [W] × 28.8 [D] × 51.6 [H] in.) |
2,685 (W) × 730 (D) × 1,310 (H) mm (105.8 [W] × 28.8 [D] × 51.6 [H] in.) |
2,070 (W) × 730 (D) × 1,310 (H) mm (81.5 [W] × 28.8 [D] × 51.6 [H] in.) |
|
| Weight (with stand) | 204 kg (451.9 lb.) | 188 kg (421 lb.) | 197 kg (434 lb.) | 180 kg (397 lb.) | 147 kg (324 lb.) | |
| Environment | During operation | Temperature: 20 to 32°C (68 to 90°F), humidity: 35 to 80 % RH (no condensation) | ||||
| Not operating | Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80 % RH (no condensation) | |||||
| Included items | Dedicated stands, power cord, media clamps, media holders, replacement blade for separating knife, manuals, etc. | |||||
- *1 The media holders of this machine are designed to be used exclusively with media that has a paper tube (core) with an inner diameter of 3 inches. To use 2-inch media, the optional media flanges are required.
- *2 The length of printing or cutting is subject to the limitations of the program.
- *3
- 500 gf is the maximum instantaneous blade force.
- The blade force must be adjusted according to details such as the media thickness.
- *4
- Media type: Media specified by Roland DG Corporation
- Temperature: 25°C (77°F), humidity: 50%RH
- Roll media must be loaded correctly.
- Applicable when all pinch rollers that can be used with the media width are used.
- Side margins: 25 mm (1.0 in.) or more for both the left and right margins
- Excluding expansion/contraction of the media
- Not assured when the print heater or dryer is used.
- Assumes all correction and adjustment functions of the machine have been used properly.
- *5 Print travel: 1 m (39.4 in.)
- *6
- [PREFEED] menu item must be set to "ENABLE."
- Range for assured repetition accuracy
- For media with a width exceeding 610 mm (24.0 in.): Length: 4,000 mm (157.5 in.)
- For media with a width of 610 mm (24.0 in.) or less: Length: 8,000 mm (315.0 in.)
- *7
- Provided that the media feed length is 3,000 mm (118.1 in.) or less
- Excludes the effects of slanted movement and of expansion and contraction of the media
- *8
- Data size:
- 64-inch model: 1,000 mm (39.4 in.) in the media-feed direction, 1,600 mm (63.0 in.) in the carriage-movement direction
- 54-inch model: 1,000 mm (39.4 in.) in the media-feed direction, 1,346 mm (53.0 in.) in the carriage-movement direction
- No lamination
- Automatic detection of crop marks at 4 points when media is reloaded
- During cutting, [PREFEED] menu item must be set to "ENABLE."
- Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
- Data size:
- *9
- Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
- Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
| Operating System | Windows® 10 (32/64-bit), Windows® 8.1 (32/64-bit), Windows® 7 Ultimate / Professional (32/64-bit) |
|---|---|
| CPU | Intel® Core™ 2 Duo, 2.0 GHz or faster recommended |
| RAM | 2 GB or more recommended |
| Video card and monitor | A resolution of 1,280 x 1,024 or more recommended |
| Free hard-disk space | 40 GB or more recommended |
| Hard-disk file system | NTFS format |
| Optical drive | DVD-ROM |
| Other | Internet connection recommended |
