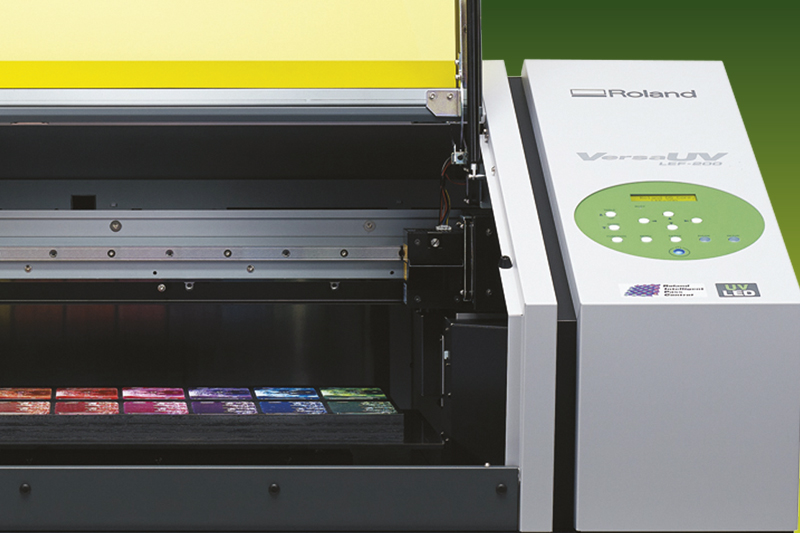

VersaUV LEF-200 Specifications

Model LEF-200
Printing technology Piezoelectric inkjet
Media Width Max. 538 mm (21.2 in.)
Length Max. 360 mm (14.2 in.)
Height Max. 100 mm (3.94 in.)
Weight Max. 5kg (11 lb.)
Printing width and length Max. 508 (W) x 330 (L) mm (20 x 13 in.)
Ink Type ECO-UV (EUV, EUV4) 220 cc cartridge
Colours 5 colours (Cyan, Magenta, Yellow, Black, White x2)
5 colours (Cyan, Magenta, Yellow, Black, White) and Primer
6 colours (Cyan, Magenta, Yellow, Black, White and Gloss)
Ink-curing unit UV-LED lamp
Print resolution (dots per inch) Max. 1440 dpi
Distance accuracy*1 Error of less than ±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater.
Connectivity Ethernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving function Automatic sleep feature
Power requirements
AC 100 to 240 V ±10%, 1.8 A (50/60 Hz)
Power consumption During operation Approx. 149 W
Sleep mode Approx. 13 W
Acoustic noise level During operation 60 dB (A) or less
During standby 49 dB (A) or less
Dimensions 1202 (W) x 962 (D) x 549 (H) mm (47.4 x 37.9 x 21.7 in.)
Weight 110 kg (242.5 lb)
Environment Power on*2
Temperature: 20 to 32°C (68 to 90°F) (22°C/72°F or higher recommended)
Humidity: 35 to 80% RH (no condensation)
Power off
Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80% RH (no condensation)
Included items
Power cord, software RIP, User's Manual, pad trays, etc.

*1 25°C or 77°F, humidity: 50%.

*2 Operating environment.

Specifications, designs and dimensions listed may be subject to change without notice.

VersaWorks 6 System Requirements
Operating System Windows® 10 (32/64 bit), Windows® 8.1 (32/64 bit), Windows® 7 Ultimate/Professional (32/64 bit)
CPU Intel Core™ 2 Duo, 2.0 GHz or faster recommended
RAM 2GB or more recommended
Video card and monitor A resolution of 1280 x 1024 or more recommended
Free hard disk space 40 GB or more recommended
Optical drive DVD-ROM
Other Internet connection recommended
