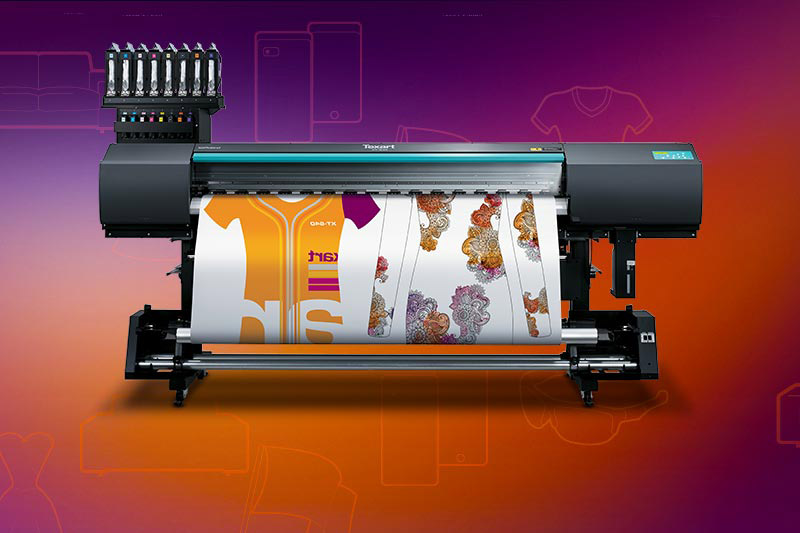

Texart XT-640 Specifications
|Printing Technology||Piezoelectric inkjet|
|Media||Width||259 to 1625 mm (10.2 to 64 in.)|
|Thickness||Max. 1 mm (39 mil)|
|Roll outer diameter||Max. 210 mm (8.3 in.)|
|Roll weight||Max. 40 kg (88 lb)|
|Core diameter *1||76.2 mm (3 in.) or 50.8 mm (2 in.)
|Printing width *2||Max. 1615 mm (63.6 in.)|
|Ink||Type||Texart ink, 1000 cc pouch|
|Colours|| 4 colours (Cyan, Magenta, Yellow and Black)
8 colours (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, Violet)
8 colours (Cyan, Magenta, Yellow, Black, Fluorescent Pink, Fluorescent Yellow, Orange, Violet)
|Print resolution (dots per inch)
|Max. 1440 dpi
|Distance accuracy *3||Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater|
|Dryer *4||Setting range for the preset temperature: 30 to 40°C (86 to 104°F)|
|Connectivity||Ethernet (100BASE-TX/1000BASE-T, automatic switching)|
|Power-saving function||Automatic sleep feature|
|Power requirements||AC 100 to 120V ±10%, 5.5 A, 50/60 Hz or AC 220 to 240V ±10%, 2.8A, 50/60 Hz|
|Power consumption||During operation||Approx. 750 W|
|Sleep mode||Approx. 70 W|
|Acoustic noise level||During operation||62 dB (A) or less|
|During standby||45 dB (A) or less|
|Dimensions (with stand)||2835 (W) x 830 (D) x 1650 (H) mm (111.7 x 32.7 x 65 in.)|
|Weight (with stand)||214 kg (471.8 lb)|
|Environment||Power on||Temperature: 18 to 25°C (64.4 to 77°F), humidity: 35 to 65%RH (no condensation)|
|Power off||Temperature: 15 to 30°C (59 to 86°F), humidity: 20 to 80%RH (no condensation)|
|Included items||Exclusive stands, power cord, media clamps, media holder, replacement blade for separating knife, software RIP, User’s Manual, etc.|
|4 colour CMYK|
||540 x 360||2||63 sqm/hr|
|Production||540 x 360||3||41 sqm/hr|
|Standard||360 x 720||4||30 sqm/hr|
|High Quality||720 x 720||9||13 sqm/hr|
|8 colour CMYKLcLmLkOrViFpFy|
|High Speed||540 x 360||4||31 sqm/hr|
|Production||540 x 360||5||25 sqm/hr|
|Standard||360 x 720||8||15 sqm/hr|
|High Quality||720 x 720||16||7 sqm/hr|
|Operating system||Windows® 10 (32/64-bit)|
|CPU||Intel® Core™ i7-7700K (4.2 GHz) Socket 1151 or faster|
|RAM||8GB or more recommended|
|Video card and monitor||Screen resolution of 1600 x 900 or higher recommended|
|Free disk space (HDD/SSD)||100 GB or more recommended|
*1 The media holder for this machine is exclusively designed for media rolls with a paper tube measuring 76.2 mm (3 in.) in diameter. To use 50.8 mm (2-in.) media rolls, the optional media flanges are required.
*2 The length of the production run is subject to the limitations of the software program.
*3 Media type: Media specified by Roland DG Corp. Temperature: 25°C (77°F), humidity: 50%. Roll media must be loaded correctly. Excluding expansion/contraction of the media. All corrections or adjustment function of this machine have been made properly. Print travel: 1 m.
*4 Warm-up is required after the power is turned on. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and the media width, the set temperature may not be reached.
Please note: an external dryer unit may be required depending upon printing and environmental conditions.
Specifications, designs and dimensions listed may be subject to change without notice.
