Texart RT-640 Dye-Sublimation Printer

Texart RT-640 Dye-Sublimation Printer Features

Add variety to your business

Dye-sublimation transfer is a simple and affordable method of customization and production. With an RT-640 printer and a heat press, you can print designs onto transfer paper and heat press to a wide variety of fabric, product blanks and dye-sublimation substrates, including:

Polyester fabrics
Metal panels
Coated ceramics
Lycra and stretch materials
Performance fabrics
Sporting goods
Smart device cases
...and much more!
Texart RT-640 Dye-Sublimation Printer with 4-color or 8-color options

High Quality Ink Technology with 4-colour or 8-colour Configurations and Fluorescent Options

The Texart RT-640 Dye-Sublimation Transfer Printer can be configured as a 4-colour or 8-colour device. In 4-colour (CMYK) mode, Texart inks produce vivid colors with rich blacks and sharp details. In 8-colour (CMYKLcLmOrVi) mode, the addition of Orange and Violet inks produces an increased color gamut with bright reds, intense oranges, and deep purples, while Light Cyan and Light Magenta offer subtle gradations and delicate skin tones. Texart Fluor inks in Yellow and Pink are also available for specialized fluorescent prints, ideal for sportswear, fashion apparel and vibrant soft signage.

The Roland Ink System uses 1000cc airtight sealed pouches for volume production. When in 4-colour (CMYK) mode, the system automatically switches to the backup ink pouch when the primary pouch runs out, to allow for output of 2-liters per color.

RT-640 feed adjustment
RT-640 feed adjustment

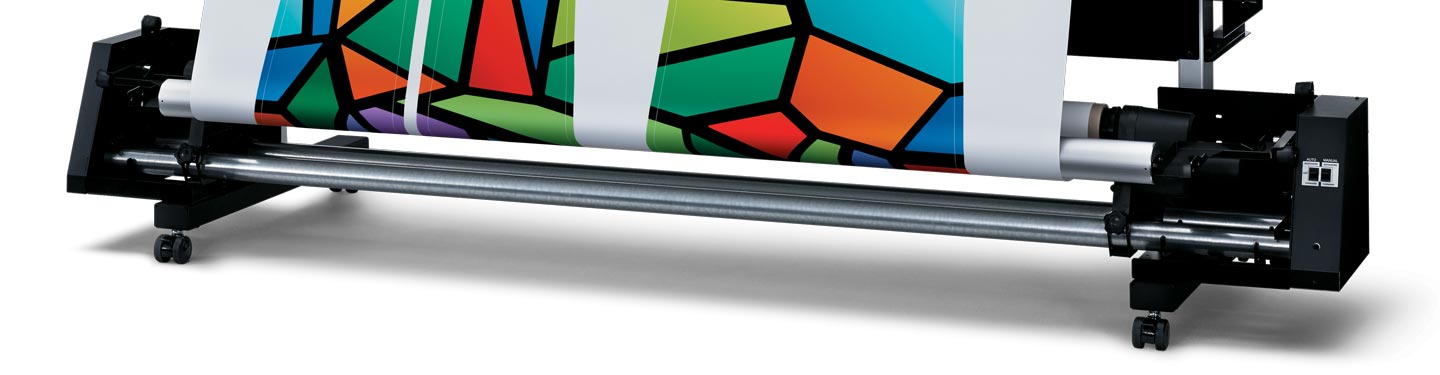

Included Take-Up System and Precision Media Tracking

The RT-640 is equipped with a TU3 take-up attachment to ensure stable and uninterrupted production, and combines with a media feed adjuster for even tensioning with no skewing. The TU3 take-up system includes a front-mounted roller and tension controlled take-up unit for optimum media feeding and tracking. Its main features include a roll media support that holds 50kg, a dancer roller for effortless take-up, auto media release and auto media rewind, and a rotating shaft face to decrease resistance and ensure flawless feed accuracy.


ErgoSoft RIP Roland Edition 2
ErgoSoft RIP Roland Edition 2

Ergosoft is widely regarded as the premier RIP software in the graphic, textile and dye-sublimation market. Ergosoft Roland DG Edition 3 is designed for use with the XT-640, RT-640 and RT-640M in all color modes.

  • Intuitive interface, comfortable image editing and a vaste range of print output tools
  • Aurelon PDF engine for faster RIP times and processing
  • 8 simultaneous RIP servers to ensure optimal RIP performance for multiple jobs
  • ControlCenter, to give you quick and easy access to the specific screens you wish to use
  • SwatchBooks function, to quickly reproduce the desired colors, including Pantone®
  • Automatic replace of spot colors
  • SwatchMatcher function, to minimize Color differences in multiple printers environments
  • Superior color management with Color Replacement feature to identify existing Spot Channels within EPS/PDF and PSD/ TIFF files
  • Create or import printable Color Books from custom or industry-standard charts, including FOGRA and Pantone®
  • Step & Repeat for duplication and layout of repeating patterns with no gap for a seamless finish and maximum media efficiency
  • Unlimited Hot Folder creation allows multiple users to submit jobs
  • Job cost calculation and other advanced production features
Texart RT-640 Dye-Sublimation Printer with 4-color or 8-color options

Optimized Print Head for Exceptional Output and Value

An advanced, 8-channel print head features a dedicated sublimation waveform and maintenance sequence control technology for efficient ink coverage that lowers running costs while ensuring high quality. The RT-640 print head produces seven different droplet sizes for smooth colors and gradations.
Texart RT-640 Dye-Sublimation Printer remote controlled sublimation

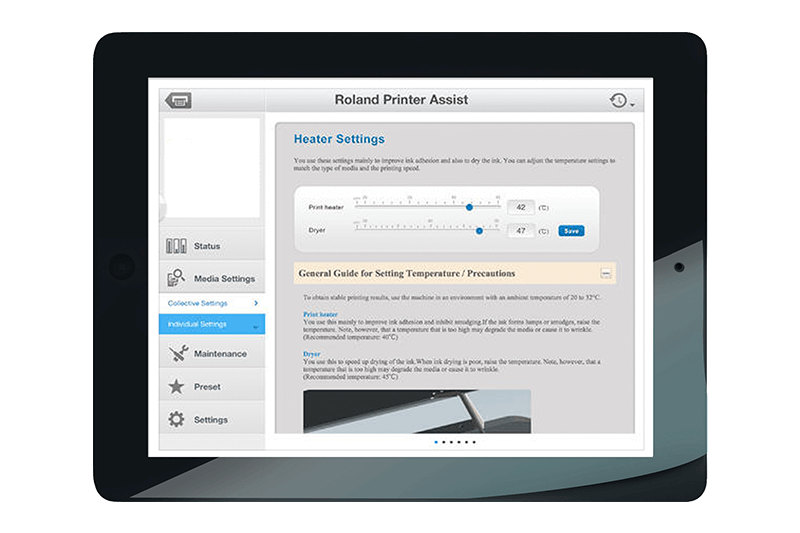

Operate Efficiently with Roland Printer Assist

Instantly observe ink levels and waste bottle status with the free Roland Printer Assist iPad App, and receive notifications of when consumable parts need to be replaced. Manage one or multiple RT-640s remotely from your tablet.

Available for download from the Apple App Store, Roland Printer Assist allows users to perform common printer functions such as power on/off, test printing and cleaning, remotely from within the printer network. Processes such as manual cleanings and part replacement feature step by step diagrams that walk you through the procedures, making maintenance tasks a breeze.

Texart RT-640 Dye-Sublimation Printer remote controlled sublimation

Superior Reliability and Support

The RT-640 represents the most reliable technology backed by unmatched customer service and technical support.

Roland DG's international ISO certifications are your assurance of our commitment to quality products and service.

For more details about warranty, please contact our dealers.
