SOLJET PRO 4 XR-640 Large Format Printer/Cutter Features

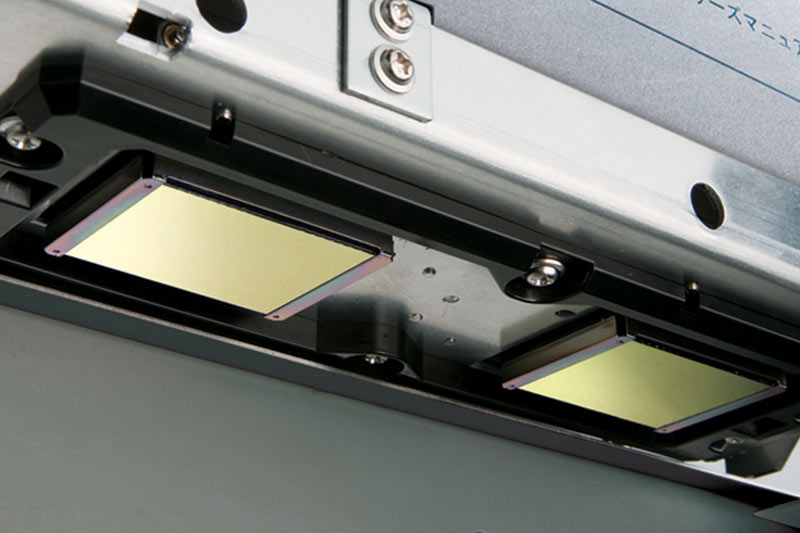

SOLJET PRO 4 XR-64 printheads

State of the Art Print Engine

The XR-640 features two inline gold-plated 8-channel piezo inkjet heads for high-speed, high-quality printing. With Roland Intelligent Pass Control technology and variable dot control producing droplets of up to seven different sizes, the XR-640 achieves smooth gradations, exceptional solid colours and superior photographic reproduction in all print modes.

The print heads are arranged in an inline formation and configured in a mirrored pattern, virtually eliminating chromatic banding in bi-directional printing.

SOLJET PRO 4 XR-64 printheads

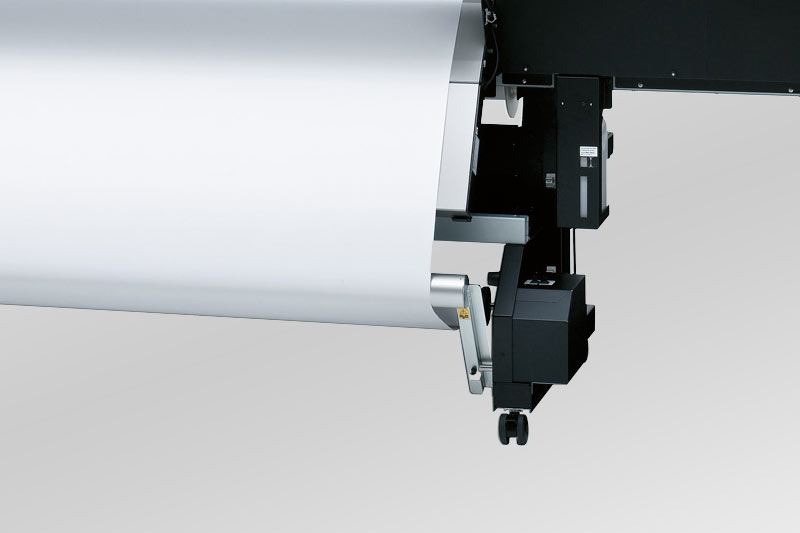

SOLJET PRO 4 XR-640 take-up system
SOLJET PRO 4 XR-640 take-up system

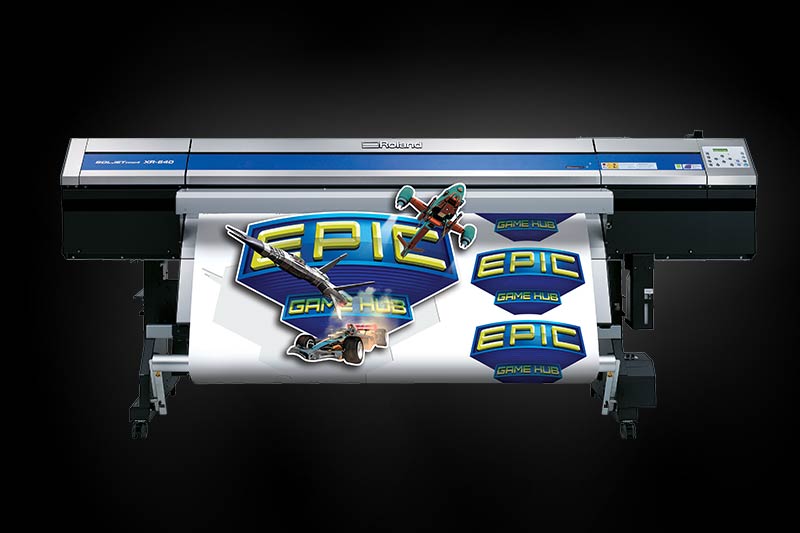

Advantage of Integrated Print/Cut

The ability to use a single device to take a print/cut job from start to finish creates a great competitive advantage for print service providers. By automatically contour cutting graphics as soon as they finish printing, the XR-640 eliminates the need to reload and reposition graphics, saving valuable time and effort, and saving on the cost of a stand-alone cutter. With the TU-2 take-up system, the XR-640 is capable of performing long, unattended print/cut runs, or functioning as a stand-alone vinyl cutter.

Roland’s Quadralign four-point optical registration system allows users to remove prints, laminate and reload them for precision cutting. Quadralign automatically realigns the cutting path and compensates for skew and distortion.

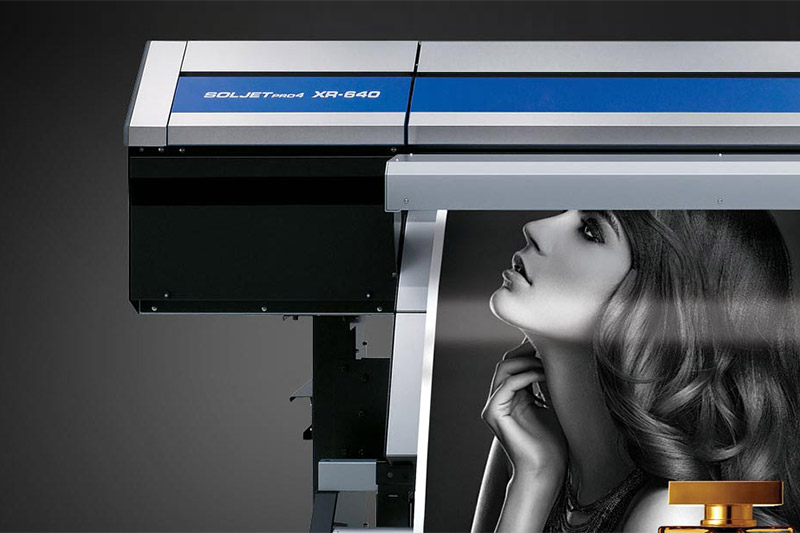

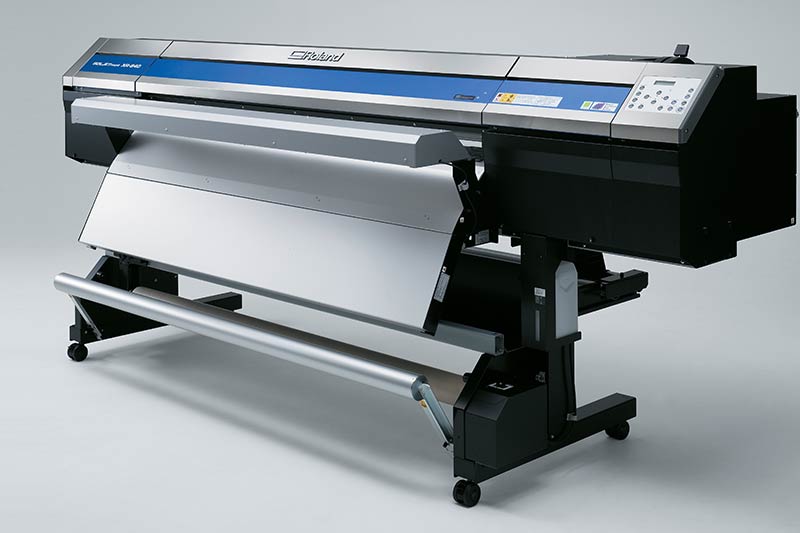

SOLJET PRO 4 XR-640 Large Format Color Printer/Cutter

Advanced Production and Media Handling

With print speeds of up to 49 m2/h (528 sqft.) for CMYK applications, as well as print/cut capability, the XR-640 adds a new level of speed the production process.

The PRO 4 XR-640 is a true production wide-format colour printer, featuring a media feed and take-up system that accommodates rolls of up to 40kg (88lbs) for long, unattended print runs. Adjustable height print heads enable the XR to print on various media thicknesses for the ultimate in versatility.

SOLJET PRO 4 XR-640 Large Format Color Printer/Cutter

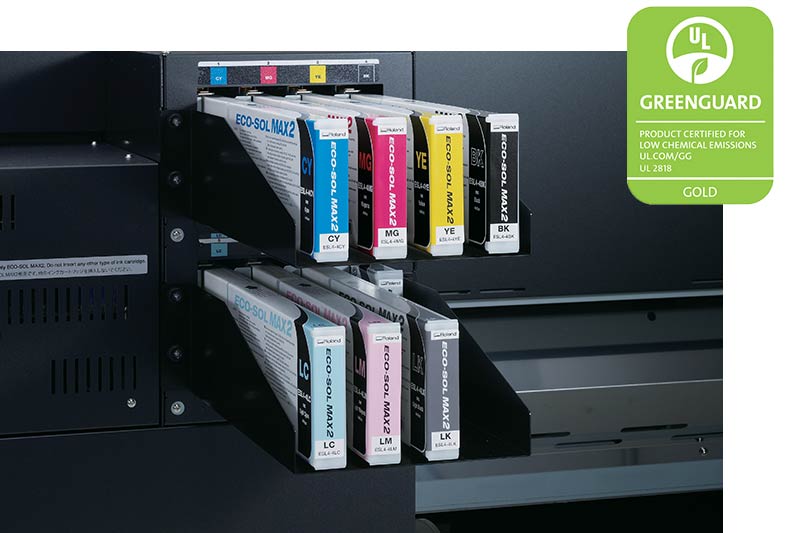

ECO-SOL max inks greenguard certified
ECO-SOL max inks greenguard certified

Superior Print Results with ECO-SOL MAX Inks

Award-winning ECO-SOL MAX eco-solvent inks produce rich, vibrant colours that other inks simply can’t match. They dry quickly and provide long-term outdoor durability, scratch and chemical resistance, broad uncoated media support and a wide colour gamut. GREENGUARD Gold certified, ECO-SOL MAX inks meet some of the world's most rigorous standards for use in schools and heathcare environments.

ECO-SOL MAX specialty inks expand your possibilities, allowing for stunning effects and adding value to any graphic.

Light Black - Provides better reproduction of grey colour gradients and more natural skin tones.

Metallic - This metallic ink can be printed as a spot colour or combined with CMYK to produce over 500 striking metallic and pearlescent colours.

White - Allows for greater opacity and luxury prints on clear or dark substrates.

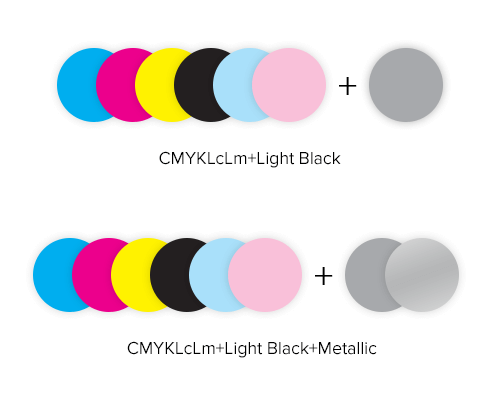

A Choice of Seven or Eight-Colour Printing

The XR-640 offers a choice of seven or eight-colour printing. Choose from the following ink configurations:

CMYKLcLm+Light Black

CMYKLcLm+Light Black+White

CMYKLcLm+Light Black+Metallic


CMYKLcLm + Light Black or CMYKLcLm + Light Black + Metallic
CMYKLcLm + Light Black + White or CMYKLcLm + White + Metallic
SOLJET PRO 4 XR-640 Printer/Cutter

Automated Ink Circulation System

Designed to reduce waste of White and Metallic ink, Roland DG's Automated Ink Circulation System dramatically lowers running costs while ensuring exceptional image quality throughout the longest production runs.

Roland OnSupport for Remotely Managing Your Printer

The XR features Roland OnSupport, an online customer support system that allows users to remotely track the printer status and send e-mails to users notifying them when a job is start, completed or when ink is running low. Users can download firmware updates and important product information at an exclusive website in just one click.
VersaWorks 6

New VersaWorks 6 Included

Get ready for a new era in digital printing. With a Harlequin RIP core engine, advanced features and easy-to-use capabilities that make VersaWorks 6 the most powerful RIP software ever.

With VersaWorks 6, you can maximize the power of your printer or printer/cutter with the latest printing environment.

  • 64-bit native for more powerful RIP processing
  • Native PDF processing, including files with transparencies
  • New Printer Color Matching for consistent color with multiple units
  • Built-in Pantone® and Roland spot color libraries
  • 5 print queues and hot folders for increased efficiency and productivity
VersaWorks 6
SOLJET PRO 4 XR-640 Large Format Color Printer/Cutter
SOLJET PRO 4 XR-640 Large Format Color Printer/Cutter

Integrated Tri-Heater System

The XR-640 dries prints quickly – even in high-speed mode – for immediate collection by the take-up system, ready for finishing and installation. An integrated tri-heater system features three components: a pre-heater that improves media receptiveness, a print heater to accelerate ink fastness and brightness, and a dryer to accelerate the drying process and improve productivity and scratch resistance. All these functions can be controlled from either the printer panel or VersaWorks 6.

SOLJET PRO 4 XR-640 Large Format Color Printer/Cutter

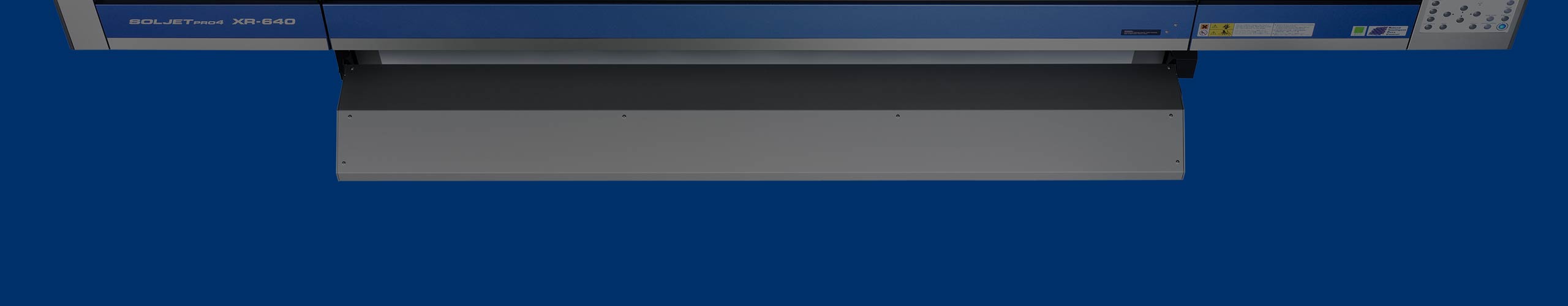

Optional DU2-640 Extended Heat & Dryer System Available

An optional DU2-640 heater/blower unit provides the ability to print highly saturated images at full speed while using the take-up system. For increased media feeding accuracy during print/cut operations, the DU2-640 also enables users to take full advantage of all the XR-640 pinch rollers.

Superior Reliability and Support

The XR-640 represents the most reliable technology backed by unmatched customer service and technical support.

Roland DG's international ISO certifications are your assurance of our commitment to quality products and service.

For more details about warranty, please contact our dealers.
