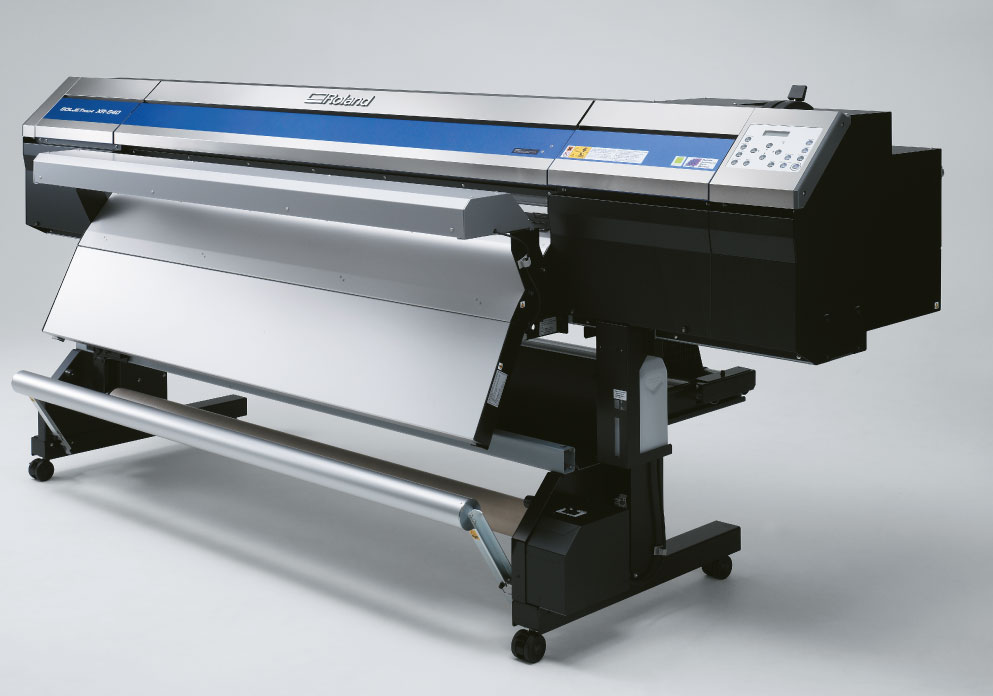

SOLJET PRO 4 XR-640 Printer/Cutter

SOLJET PRO 4 XR-640 Accessories

CONSUMABLES

Model Description
ESL4-4BK ECO-SOL MAX 2 440cc Black
ESL4-4CY ECO-SOL MAX 2 440cc Cyan
ESL4-4LC ECO-SOL MAX 2 440cc Light Cyan
ESL4-4LK ECO-SOL MAX 2 440cc Light Black
ESL4-4LM ECO-SOL MAX 2 440cc Light Magenta
ESL4-4MG ECO-SOL MAX 2 440cc Magenta
ESL4-4YE ECO-SOL MAX 2 440cc Yellow
ESL4-MT ECO-SOL MAX 2 220cc Metallic Silver
ESL4-WH ECO-SOL MAX 2 220cc White
ESL4-CL Cleaning liquid cartridge, 220cc, 1pc
ZEC-U5025 Cemented carbide blade for vinyl, fluorescent and reflective film, offset value 0.25 mm, 5 pcs
ZEC-U5022 Cemented carbide blade for vinyl film, offset value 0.25 mm, 2 pcs
XD-CH2 Adjustable depth blade holder, Alloy tip
XD-CH3 Adjustable depth blade holder, Plastic tip
DU-640 Optional post dryer for XR-640

Optional DU-640 heater and blower specifications
Dryer unit Heating type (with blower fan), setting range for the preset temperature: 30 to 55°C (*1)
Power requirements (*2) AC 100 to 120V ±10%, 5 A, 50/60 Hz or AC 220 to 240 V ±10%, 3 A, 50/60 Hz
Power consumption Approx. 650 W
Weight 26 kg
Power on Temperature: 15 to 32°C - (20°C or more recommended), humidity: 35 to 80% (no condensation)
Power off Temperature: 5 to 40°C, humidity: 20 to 80% (no condensation)
Included items Power cord, arms, bushing, cable clamps, stays, hexagonal wrench, bolts, washers, user's manual

*1. Warm-up is required after powerup. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.

*2. Be sure to connect the machine to an unshared electrical circuit. Be sure to verify the amperage of the circuit breaker or fuse used.

DU-64 - Heater and blower unit for XR-640

HEATER AND BLOWER UNITS

Get the most out of the SOLJET PRO4 XR series with a heater and blower unit. They dry your projects faster which allows you to produce more.

DU-640 (XR-640)

DU-64 - Heater and blower unit for XR-640
