NEWLV-290/180
LV Series Laser Engravers + VersaUV Benchtop Flatbed Printer
The Perfect Combination of Precision and Creativity
To boost your creativity and build your business, Roland DG is proud to offer a unique, new combination of precision cutting and engraving with brilliant, lifelike printing. The fusion of different capabilities empowers you to create unique and attractive items.
Our Laser Engraver and UV Flatbed Printer Combo Opens Up Profitable New Business Possibilities
LV series laser engravers are ideal for engraving or cutting shapes out of acrylic and other resins. With the VersaUV LEF/LEF2 series UV flatbed printers, you can print amazingly photo-realistic color, textures and simulated 3D embossing as well as gloss and matte finishes. Combining the LV series’ capabilities with that of the LEF/LEF2 series printers enables the creation of premium value items, such as custom giftware, personalized awards, or acrylic displays with attractive graphics. Jigs that support setting up items to be UV-printed efficiently can also be easily created by cutting out resin shapes for the number of items to be printed.
Key chains
Acrylic flower POP
Shop signs
Puzzles
Water bottle cover
Wood pierced earrings
Precision Cutting and Engraving
The LV series uses a non-contact CO2 laser to engrave complex shapes and text with crisp edges at high speed. Unlike conventional computerized engravers, cut surfaces have a smooth, clean finish without burrs, thus eliminating the need for any final touch-up work. With no engraving cutters to break or wear out, the laser always maintains a beautiful finish with no degradation in quality. The LV-290 is equipped with a CCD camera that supports positioning the material to accurately contour cut UV-printed graphics.
Supports a Broad Range of Materials
The LV series is capable of working with an extensive range of materials, from plastics to wood, leather, paper, cork and much more. With two models available featuring different laser power and work areas, users can select the model that best suits the thickness and size of the materials you wish to work with.
Simple Even for Beginners
Operating the LV series is simple enough to allow even beginners to start performing high-precision laser engraving immediately.
The LV series is equipped with functions that help users set the zero point for materials of different sizes and thicknesses. The XY zero point can be set accurately using the red laser pointer. The height can be set automatically with a single button using the contact-type auto-focus pin. The red laser pointer can be moved manually to any desired position to make setting the zero point even faster. In the case of complex shapes, by entering two or four points on the outline of the material, the center point is automatically calculated to easily set the origin.
The LV series comes standard with a Windows driver that can output directly from graphics software such as Adobe® Illustrator® and CorelDRAW®. You can set and save the optimal output parameters according to the materials and type of data. You can also preview the laser processing path and check the approximate work time before starting.
The operation panel provides a simple configuration consisting of four function keys for navigating smoothly and quickly to the function you want to use. Output data can be saved to the LV series so you can output the same processing data multiple times without returning to the Windows driver. An LED light indicates machine status such as the open / close for the body cover and on / off for laser irradiation.
Designed with Safety First
The LV series is Class 1-compliant under the “IEC60825-1” international standard for laser devices. The structural design ensures a sealed housing that prevents laser light from bleeding outside. If the cover is opened during processing, the safety interlock mechanism automatically halts laser irradiation. In addition, LED lighting illuminates the work area, allowing you to visually check whether processing is being performed safely and properly.
Support System for Peace of Mind
Roland DG provides extensive service and support throughout the customer’s business cycle. Roland DG Creative Centers provide product application examples and a variety of valuable information for starting or growing a business, Roland DG Academy helps customers utilize our products and software to their maximum potential, and Roland DG Care provides high-quality maintenance and repair services.

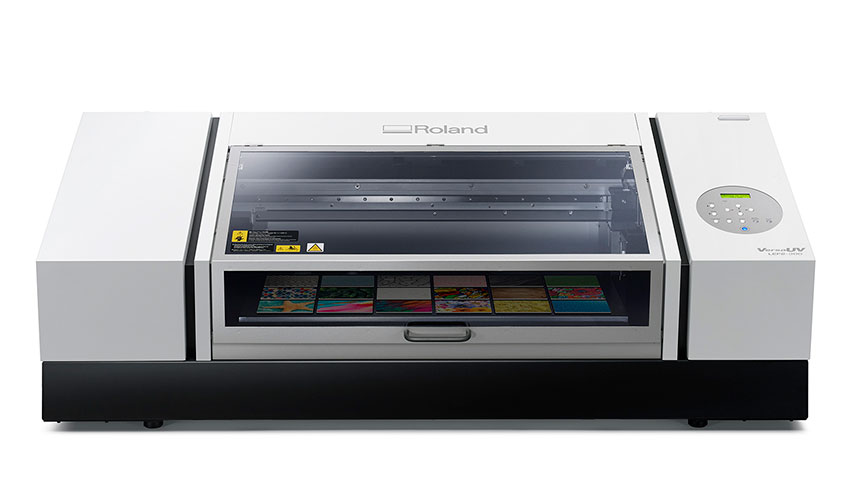

Expand Your Print Business With Our Benchtop UV Flatbed Printer
VersaUV LEF/LEF2 series print amazing graphics and lifelike textures, including premium finishes such as simulated embossing, onto a vast array of materials up to 100 mm (3.94 in.) thick. The breadth of applications you can produce can be greatly expanded to realize a highly profitable printing business.
Additional Information
| LV-290 | LV-180 | |
|---|---|---|
| Laser Source | 40W CO2 Laser | 30W CO2 Laser |
| Work Area |
When with SmartVISION Pro CCD: When without SmartVISION Pro CCD: |
458 x 305 mm (18.0 x 12.0 in.) |
| Maximum Part Size (W x L x H) | 762 x 482.6 x 165 mm (30.0 x 19.0 x 6.4 in.) | 505 x 309 x 170 mm (19.8 x 12.1 x 6.6 in.) |
| Table Size | 790 x 530 mm (31.1 x 20.8 in.) | 520 x 375 mm (20.4 x 14.7 in.) |
| Cooling | Air-cooled, Operating environment temperature 15°- 30°C (60° - 86°F) | -- |
| Drive | Closed-loop DC Servo control | |
| Maximum Motor Speed | When with SmartVISION Pro CCD: 1016 mm/s (40 in./s) When without SmartVISION Pro CCD: 1524 mm/s (60 in./s) |
1016 mm/s (40 in./s) |
| Speed Control | Adjustable from 0.1-100% (Up to 16 color-linked speed settings per job) |
|
| Power Control | Adjustable from 0-100% (UP to 16 color-linked power setting per job) |
|
| Distance Accuracy | 0.254 mm or 0.1% of move, whichever is greater | -- |
| Z-Axis Movement | Automatic | |
| Focus lens | Standard 2.0 in., Optional 1.5 in., 2.5 in. & 4.0 in. available |
Standard 2.0 in., Optional 1.5 in. available |
| Resolution (DPI) | Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500 | |
| Computer Interface | Full-speed USB 2.0 port, 10 Base-T Ethernet | |
| Memory Buffer | 32MB standard | |
| Compatible Operating Systems | Windows® 7, 8.1, 10 | |
| Display Panel | 4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus. | |
| Safety | Class I Laser Product Compliant with EN60825 | |
| Class II Laser Product Compliant with CDRH | ||
| 2006/42/EC Machinery Directive Compliance | ||
| Operation Voltage | 100-240VAC, 50-60Hz Auto Switching, Max. 15A | 100-240VAC, 50-60Hz Auto Switching, Max. 12A |
| Dimensions (W x L x H) | 1125 x 720 x 1005 mm (44.2 x 28.3 x 39.5 in.) | 740 x 780 x 410 mm (29.1 x 30.7 x 16.1 in.) |
| Weight | 167 kg (369 lb.) | 75 kg (166 lb.) |
| Fume Extraction System | External exhaust system required, one 4 in. connection on the back of the machine | |
| Included Items | Power cord, Ethernet cable, USB cable, user's guide, cleaning tissue, mirror cleaner, etc. | |
- * Specifications are subject to change without prior notice.
- * Depending on the material being processed, harmful gases may be generated that could cause symptoms such as sore throat, headache, dizziness, etc. Roland DG strongly recommends that you install a deodorizing or local exhaust ventilation system in a well-ventilated room. For more information, please contact your local distributor or dealer.
