DGSHAPE LD-80 and LD-300 laser decorators

LASER DECORATION FOR
DIGITAL PERSONALISATION

Create high-value customised products with ease


NEW LD-300, LD-80 Laser Decorators

Simply enter your personalised text, upload a graphic and with precision and ease, your unique designs are transferred onto leather1, polycarbonate, acrylic and other plastics. Easy to use and safe to operate, these Class 1 laser devices can heat transfer metallised foils onto gifts, promotional giveaways, merchandise and so much more. With our laser decorators, you’ll take objects from average to amazing in minutes.

Choose LD-300 for decorating larger items including leather
Imprint area (max):
for objects up to 50mm (H): 305mm (W) x 230mm (D),
for objects up to 216mm (H): 281mm (W) x 213mm (D)

Choose LD-80 for versatile product personalisation
Imprint area (max): 80mm (W) x 80mm (D)

Download the LD-300 Brochure

Download the LD-80 Brochure

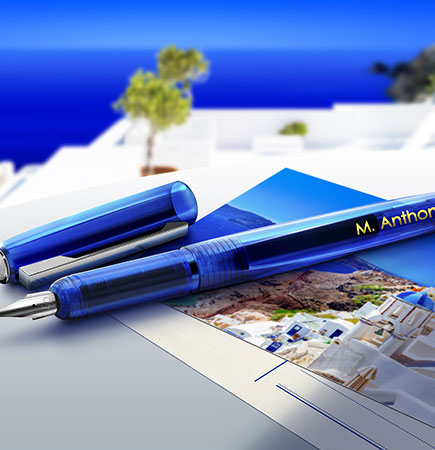

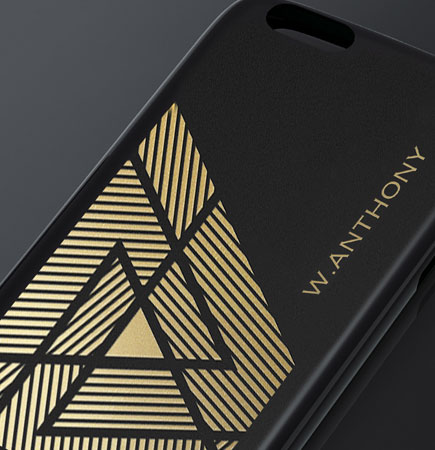

So Many Profitable Personalisation Opportunities

An industry-first in personalisation, the LD-300 and LD-80 Laser Decorators offer a unique opportunity for your brand, kiosk, gift shop, online store or personalisation business to create exciting new customised products with dazzling text and reflective graphics.



Coloured foils to decorate and personalise items with LD-300
Coloured foils to decorate and personalise items with LD-300

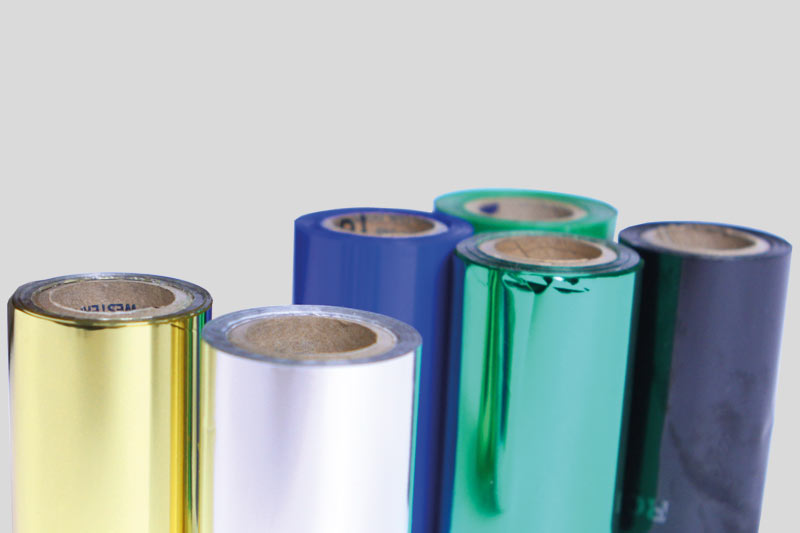

Metallised Foil

Inexpensive hot-foil stamp material is available in a range of colours and types and combines with the LD-300 and LD-80 for unique customisation results.

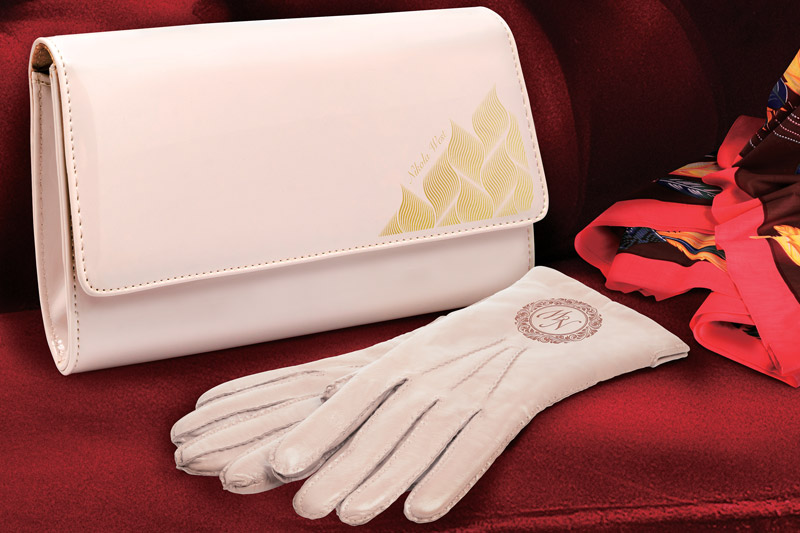

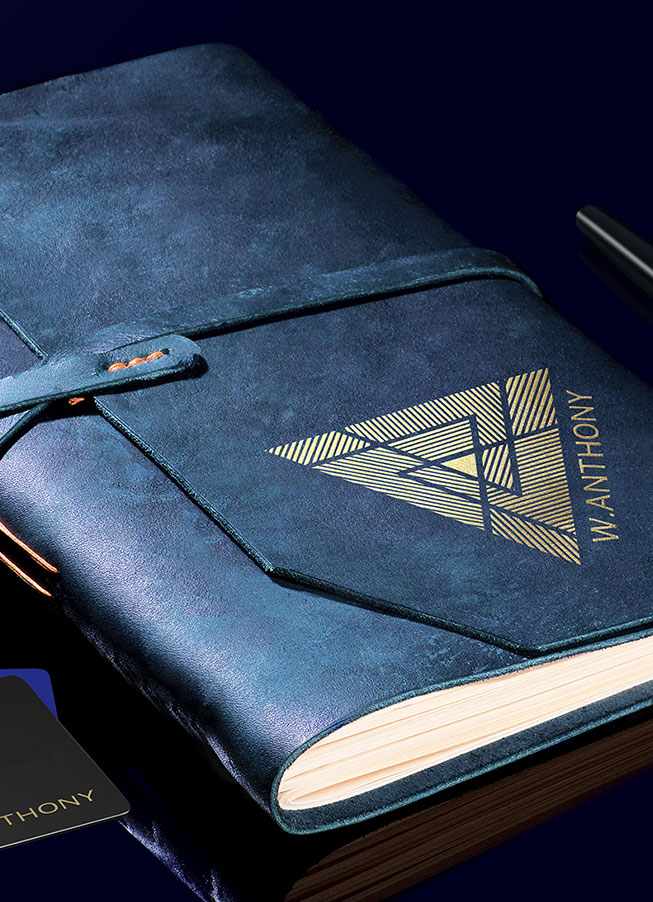

Imprint directly onto items like gloves and leather journals

Imprint directly onto natural leather with the LD-300

With the LD-300 it’s possible to foil transfer onto soft plastics, paper and leather or to imprint directly onto natural leather1 for luxurious customised finishes. Create unique, high-precision effects, including detailed images, crisp text, intricate patterns and accurate logo reproduction.
Imprint directly onto items like gloves and leather journals
LD-300 work area accommodates large items for higher revenue applications and dramatically increased productivity
LD-300 work area accommodates large items for higher revenue applications and dramatically increased productivity

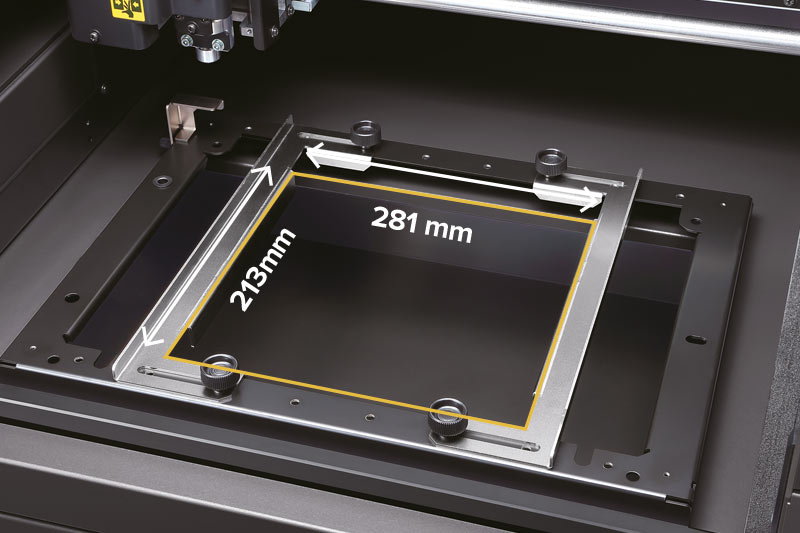

Increased working area with the LD-300

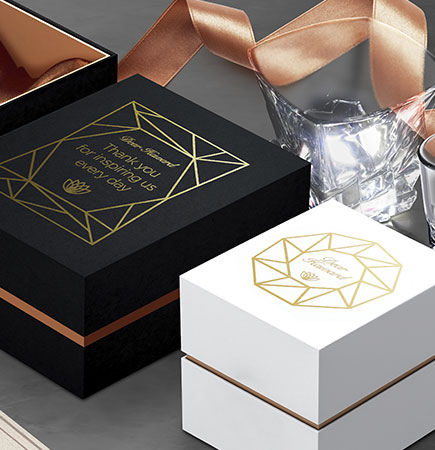

The working area of LD-300 is 305mm x 230mm and can accommodate objects up to 50mm in thickness. Removing the bed, even larger items up to 216mm thick, such as handbags and product packaging, can be accommodated with an imprint area of (max) 281mm (W) x 213mm (D).
(Photo shown is with base table removed)

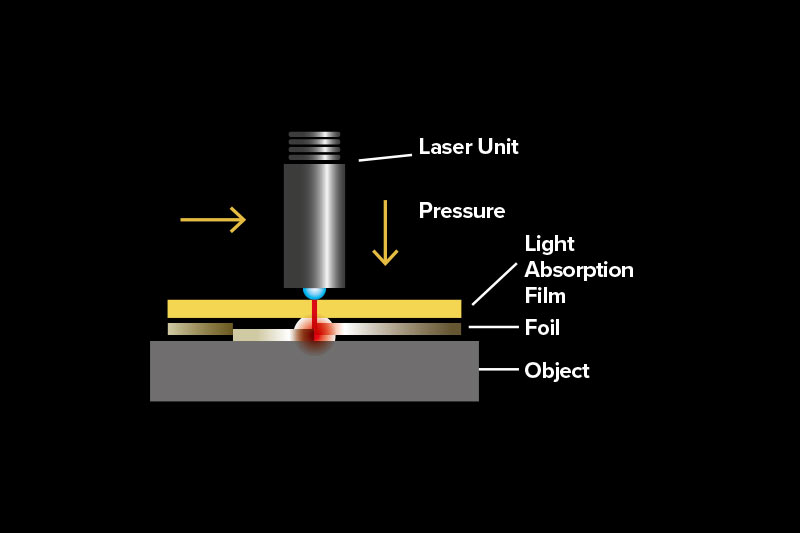

LD-300 uses semi-conductor later transfer technology to apply heat activated adhesive foil to a variety of heat-resistant and soft plastics

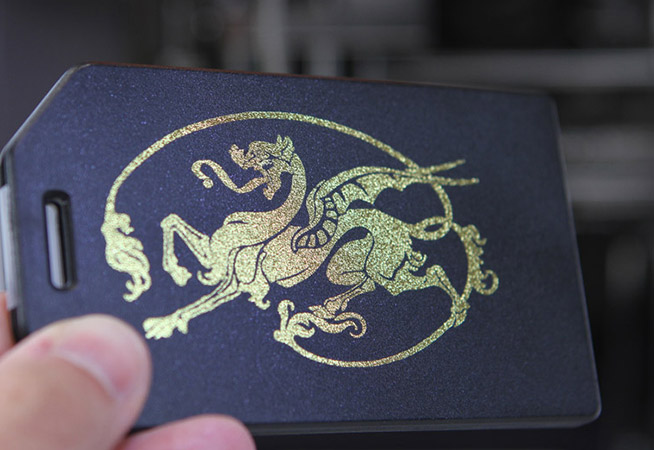

Foil Transfer on Soft Plastics with Precise Results

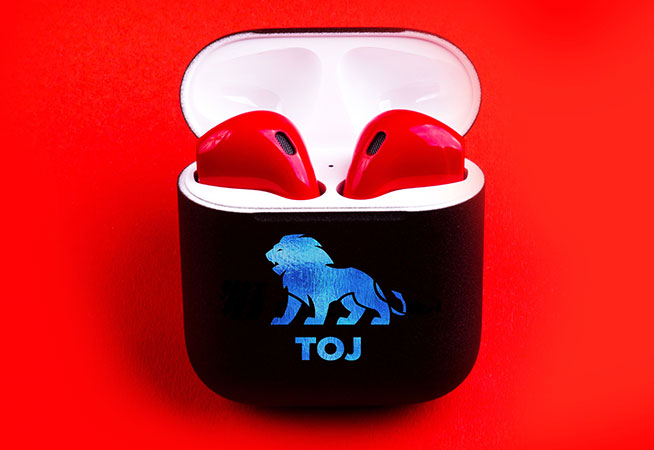

The LD-300 and the LD-80 use semi-conductor laser transfer technology to apply heat activated adhesive foil to a variety of heat-resistant and soft plastics including; acrylic, polycarbonate, polypropylene, polystyrene, and ABS2. The pinpoint accuracy of the semi-conductor laser paired with a high-quality transfer foil can create designs as small as a fraction of a millimetre!

LD-300 uses semi-conductor later transfer technology to apply heat activated adhesive foil to a variety of heat-resistant and soft plastics

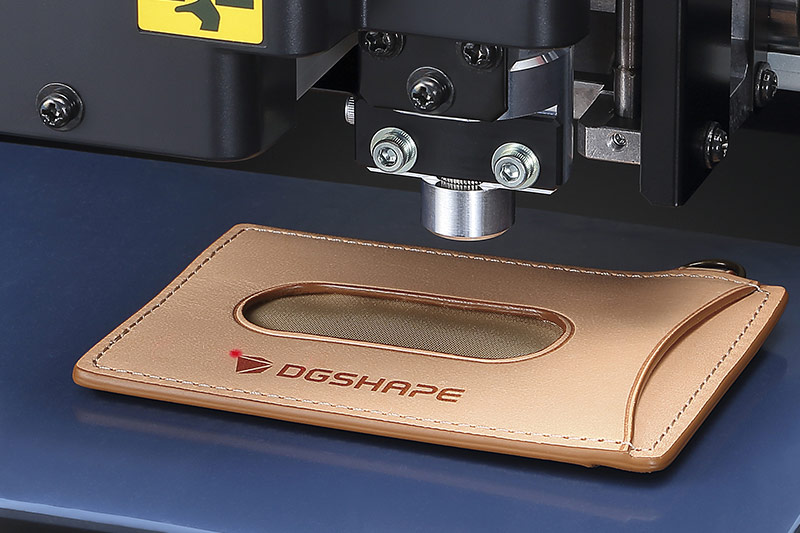

LD-300 Laser Precise
LD-300 Laser Precise

Safe Operation

The laser used in the LD-300 and the LD-80 conforms to the safest “Class 1” standard*. When the cover opens the laser supply turns off so it can be used in a retail setting without any danger of exposure. In addition, our unique method of laser decoration creates no dust or gas. *IEC 60825-1.

Produce Unique Customised Products
in 4 Easy Steps

The DGSHAPE LD-300 and the LD-80 are both incredibly economic and easy to use, using an advanced digital process for foil transfer customisation. When compared to traditional hot-foil stamping methods and laser engraving technology, they are less complicated, cleaner and a safer personalisation option.

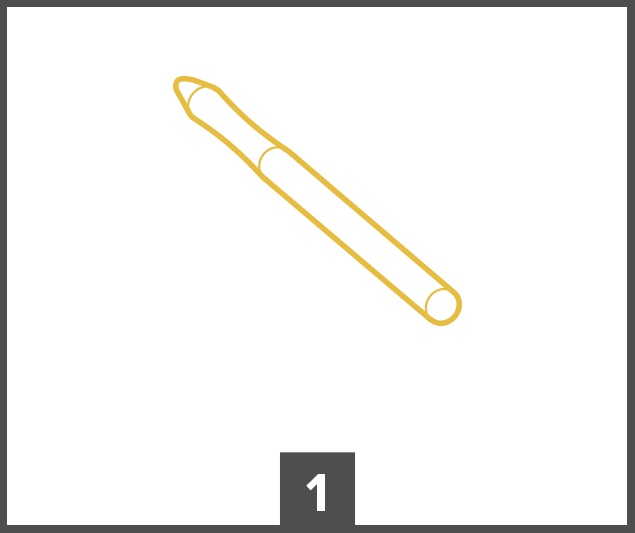

Step 1

Place your object in the machine.

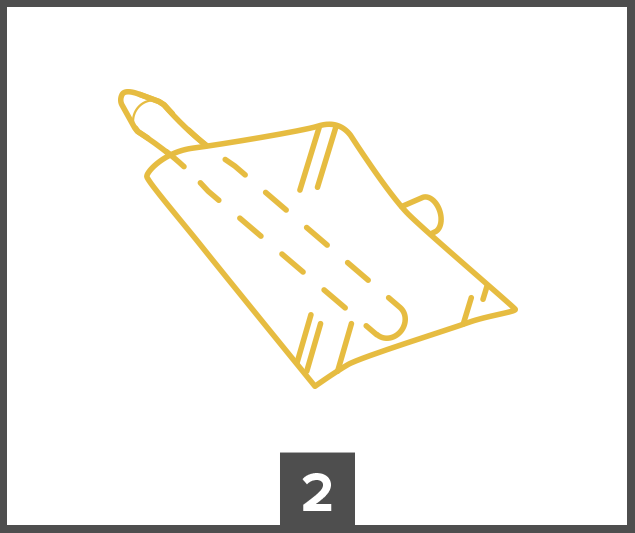

Step 2

Add your chosen foil.

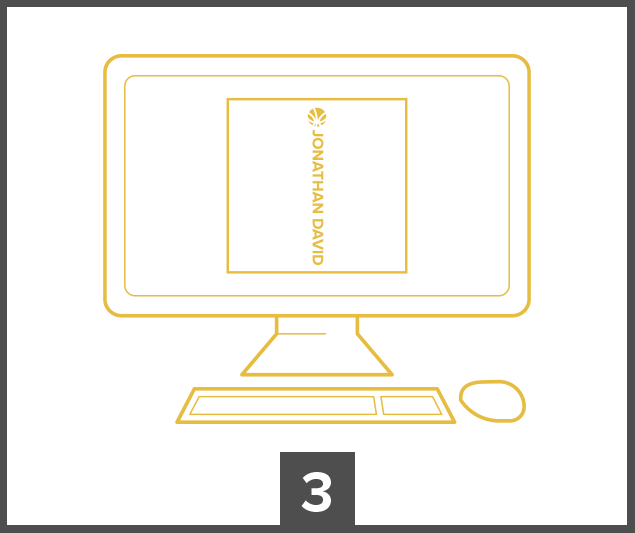

Step 3

Laser imprint your design via METAZAStudio Software.

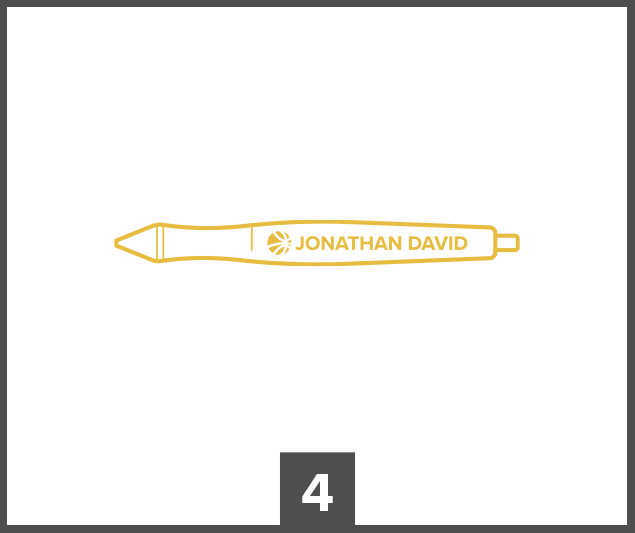

Step 4

Your customised object is ready to sell.

Additional Features of the LD-300 and LD-80

Includes Easy-to-Use Software
You don’t need to be a graphics expert to design and output artwork in METAZAStudio Software.
Vector Graphics and Text
Import and edit a wide range of files in METAZAStudio and get detailed text and image results with the LD-300 and LD-80.
No Hunger for Power
Requires no special electrical set-up and works with standard wall sockets — does not need large amounts of heat or pressure.
Variable Data
Input your serial data, including numbers and names to produce items for multiple customers.
Air Volume A Laser Clean Machine
Runs safely and cleanly with no debris or gas leakage.

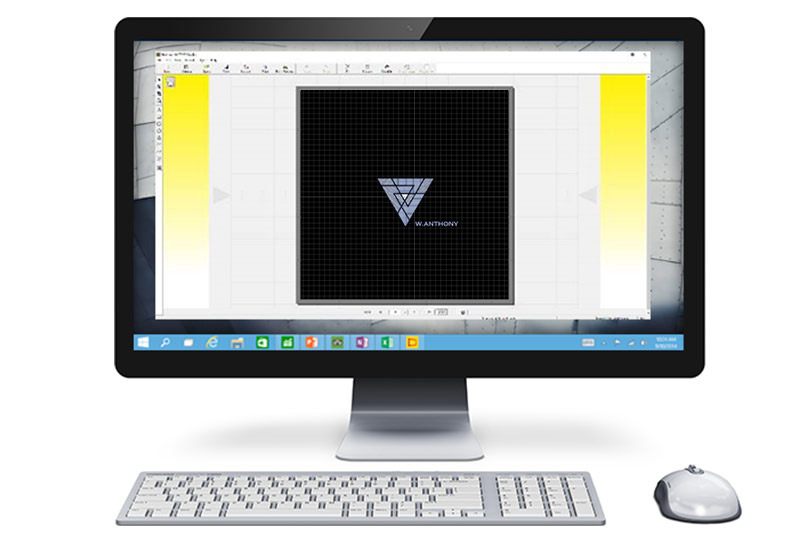

METAZAStudio Software Included with LD-300 and LD-80
METAZAStudio Software Included with LD-300 and LD-80

Powerful METAZAStudio Software Included

Both the LD-300 and the LD-80 can produce stunning graphics and crisp text using bundled METAZAStudio software. And you don’t need to be a graphics expert to design and output artwork as the software is easy to use.
cotodesign

Compatible with cotodesign software

When combined with cotodesign, Roland DG's latest design and print management software, the LD-80 becomes a complete design-order-print solution for the in-store customisation of gift items using customers' data, such as photos or artwork, from their smartphone. Other Roland DG devices3 are supported by cotodesign, allowing businesses to use it for a wide variety of applications and events.
cotodesign

Choosing the Right LD for your Business

Available in a choice of sizes and abilities to meet your laser decoration needs

  LD-300 LD-80
  LD-300 LD-80
Dimensions 616 (W) x 591 (D) x 496 (H) mm 286 (W) x 383 (D) x 308 (H) mm
Imprint max area For objects up to 50mm (H): 305 (W) x 230 (D) mm
For objects up to 216mm (H): 281 (W) x 213 (D) mm
80 (W) x 80 (D) mm
Recommended print area For objects up to 50mm (H): 275 (W) x 196 (D) mm
For objects up to 216mm (H): 281 (W) x 213 (D) mm
50 (W) x 50 (D) mm
Imprintable material4
Acrylic Yes Yes
Polycarbonate Yes Yes
Polypropylene Yes Yes
Polystyrene Yes Yes
ABS Yes Yes
Polyurethane Yes
PVC Yes
Paper (Woodfree, Art paper, Coated paper) Yes
Leather Yes
Roland DG Care
Roland DG Care

Superior Reliability and Support

The LD-300/80 represents the most reliable technology backed by unmatched customer service and technical support.

Roland DG's international ISO certifications are your assurance of our commitment to quality products and service.

For more details about warranty, please contact our dealers.

CLICK HERE FOR MORE INFORMATION ON ROLANDCARE

DGSHAPE
DGSHAPE

DGSHAPE Reliability and Support

The LD-300/80 Laser Decorator represents a new generation of technology from the DGSHAPE brand. It takes advantage of over 35 years of Roland DG experience in delivering cutting-edge digital devices with unrivaled dependability and exceptional service and support.

1 With the LD-80 you can use foil transfer for decoration on synthetic leather. With the LD-300 you can also imprint directly onto the surface of genuine leather. Please use genuine leather processed with plant-based tanning when transferring and stamping. Other types of treated leather will produce inconsistent results. In addition, please note that synthetic leather cannot be printed directly.

2 When evaluating new materials, test on a disposable piece to make sure the results are satisfactory.

3 cotodesign is compatible with VersaUV LEF/LEF2 series, VersaSTUDIO BT-12/BN-20, CAMM-1 GS-24, METAZA MPX-90/-95, LD-80.

4 Successful text and image results depend on the correct combination of foil and media. For best results, test foil transfer prior to final production.
