EGX-30A desktop engraver

EGX-30A Specifications

Model EGX-30A
Table 305 x 205 mm
Maximum operation area 305 mm (X) 205 mm (Y), Max. thickness workpiece : 5 mm (Z)
Feed rate X, Y-axis: Max. 50 mm/sec.
Mechanical resolution 0.01 mm/step, 0.00125 mm/step using micro step control.
Software resolution 0.01 mm/step
Distance accuracy +/-0.1 mm or +/-0.5% of moving distance, whichever is greater.
Right-angle accuracy +/-1 mm (305 mm)
Spindle motor Brushless DC motor, maximum 27 W
Revolution speed 5000 - 10000 rpm
Engraving tool mounting diameter 3.175 mm
Acceptable engraving materials Plastics (ABS, Acrylic) and Brass and Aluminium for Scribing
Speed of tool up / down movement 1 per sec.
Interface USB
LED Operation indicators 2 (PAUSE/VIEW, ORIGIN POINT/SET ORIGIN POINT)

Mode Indicators 2 (ENGRAVER/SCORE)

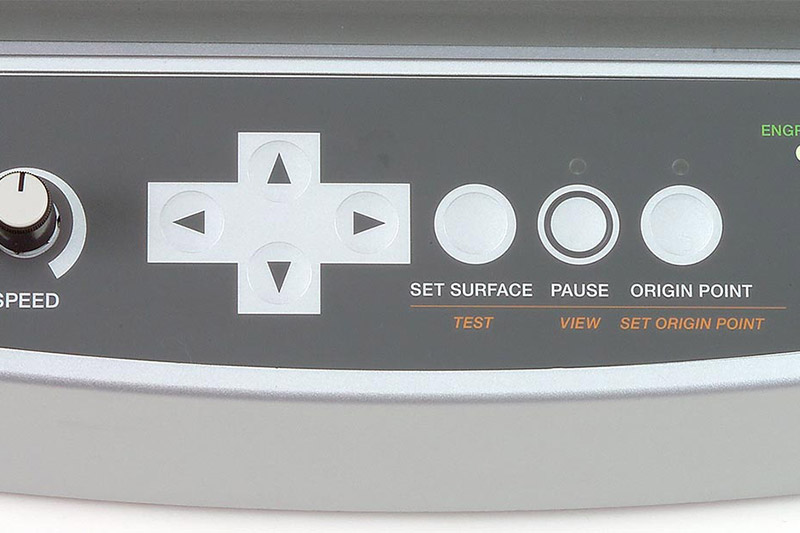

Control panel keys ↑,↓,←,→, SET SURFACE/TEST, PAUSE/VIEW, ORIGIN POINT/SET ORIGIN POINT, SELECT
Power requirements Dedicated AC Adapter: AC 100 to 240 V +/- 10% 50/60 Hz

Machine: DC 24V, 0.7A
Acoustic noise level Operation Mode: 70 dB (A) or less, Standby mode: 40 dB (A) or less (According to ISO 7779)
External dimensions 513 mm (W) × 491 mm (D) × 217 mm (H)
Weight 13.2 kg (29.1 lb)
Packed dimensions 863.6 mm (W) x 609.6 mm (D) x 304.8 mm (H)
Packed weight 17.0 kg (37.5 lb)
Operation temperature 5 to 40° C (41 to 104° F)
Operation humidity 35 to 80% (no condensation)
Included items  AC adapter, power cord, usb cable, character cutter, vacuum-adapter, depth regulator nose, diamond scraper adapter, hexagonal screw driver, spanner, hexagonal wrench, test material, adhesive sheet for securing material, Roland software package CD-ROM, User's Manual

Specifications, designs and dimensions listed may be subject to change without notice.
